IS41C85125A

Features: • Fast access and cycle time• TTL compatible inputs and outputs• Refresh Interval: 1024 cycles/16 ms• Refresh Mode: RAS-Only, CAS-before-RAS (CBR), and Hidden• JEDEC standard pinout• Single power supply:-- 5V ± 10% (IS41C85125A)-- 3.3V ± 10% (IS41LV851...

product image

IS41C85125A Picture
See larger image
SeekIC No. : 004379002 Detail

IS41C85125A: Features: • Fast access and cycle time• TTL compatible inputs and outputs• Refresh Interval: 1024 cycles/16 ms• Refresh Mode: RAS-Only, CAS-before-RAS (CBR), and Hidden•...

IS41C85125A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IS41C85125A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/8/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fast access and cycle time
• TTL compatible inputs and outputs
• Refresh Interval: 1024 cycles/16 ms
• Refresh Mode: RAS-Only, CAS-before-RAS (CBR), and Hidden
• JEDEC standard pinout
• Single power supply:
-- 5V ± 10% (IS41C85125A)
-- 3.3V ± 10% (IS41LV85125A)
• Lead-free available


Pinout

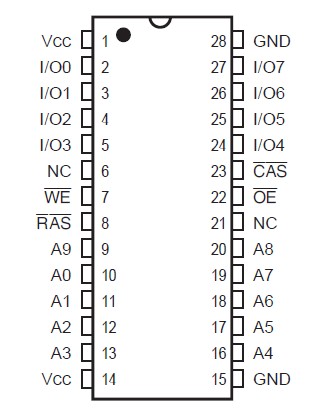

Connection Diagram


Specifications

Symbol
Parameters
Rating
Unit
VT
Voltage on Any Pin Relative to GND

5V

3.3V

1.0 to +7.0

0.5 t0 +4.6
V
VCC
Supply Voltage

5V

3.3V

1.0 to +7.0

0.5 t0 +4.6
V
IOUT
Output Current




50
mA
PD
Power Dissipation
1
w
TA
Operation Temperature
Com
0 to +70
°C
TSTG
Storage Temperature
55 to +125
°C



Description

The ISSI IS41C85125A and IS41LV85125A are 512,288 x 8- bit high-performance CMOS Dynamic Random Access Memories. Fast Page Mode allows 1024 random accesses within a single row with access cycle time as short as 12  ns per 8-bit word.

These features make the IS41C85125A and the IS41LV85125A ideally suited for high band-width graphics, digital signal processing, high-performance computing systems, and peripheral applications.

The IS41C85125A and IS41LV85125A are available in a 28-pin, 400-mil SOJ package.
