IS41C85120A

Features: • TTL compatible inputs and outputs• Refresh Interval: 1024 cycles/16 ms• Refresh Mode : RAS-Only, CAS-before-RAS (CBR), and Hidden• JEDEC standard pinout• Single power supply 5V ± 10% (IS41C85120A) .3V ± 10% (IS41LV85120A)• Lead-free availablePinoutSp...

product image

IS41C85120A Picture
See larger image
SeekIC No. : 004379000 Detail

IS41C85120A: Features: • TTL compatible inputs and outputs• Refresh Interval: 1024 cycles/16 ms• Refresh Mode : RAS-Only, CAS-before-RAS (CBR), and Hidden• JEDEC standard pinout• Si...

IS41C85120A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IS41C85120A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• TTL compatible inputs and outputs
• Refresh Interval: 1024 cycles/16 ms
• Refresh Mode : RAS-Only, CAS-before-RAS (CBR), and Hidden
• JEDEC standard pinout
• Single power supply 5V ± 10% (IS41C85120A)  .3V ± 10% (IS41LV85120A)
• Lead-free available


Pinout

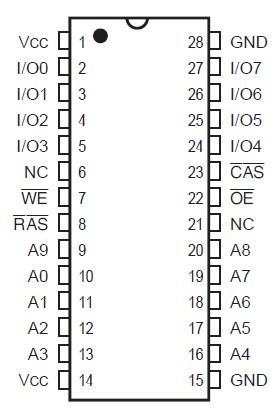

Connection Diagram


Specifications

Symbol
Parameters
Rating
Unit
VT
Voltage on Any Pin Relative to GND
5V 1.0 to +7.0
3.3V 0.5 to +4.6
V
VCC
Supply Voltage
5V 1.0 to +7.0
3.3V 0.5 to +4.6
V
IOUT
Output Current
50
mA
PD
Power Dissipation
1
W
TA
Commercial Operation Temperature
0 to +70
°C
TSTG
Storage Temperature
55 to +125
°C

Note: 1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

The ISSI IS41C85120A and IS41LV85120A are 524,288 x 8- bit high-performance CMOS Dynamic Random Access Memory. Both products offer accelerated cycle access EDO Page Mode. EDO Page Mode allows 512 random accesses within a single row with access cycle time as short as 10ns per 8-bit word. The Byte Write control, of upper and lower byte, makes the IS41C85120A and IS41LV85120A ideal for use in 16 and 32-bit wide data bus systems.

These features make the IS41C85120A and IS41LV85120A ideally suited for high band-width graphics, digital signal processing, high-performance computing systems, and peripheral applications.

The IS41C85120A and IS41LV85120A are available in a 28-pin, 400-mil SOJ package.
