IS27HC010

Notes:
1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. Minimum DC input voltage is 0.5V. During transitions, inputs may undershoot to 2.0V for periods less than 10 ns. Maximum DC voltage on output pins is VCC + 0.5V which may overshoot to VCC + 2.0V for periods less than 10 ns.
3. Maximum DC voltage on A9 or VPP may overshoot to +13.5V for periods less than 10 ns.

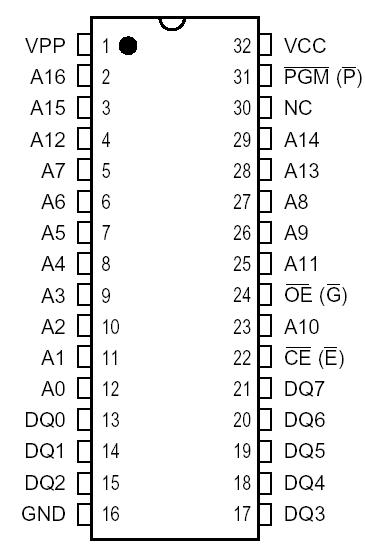

The ISSI IS27HC010 is an ultra-high-speed 1 megabit (128Kword by 8-bit) Ultraviolet Erasable CMOS Programmable Read-Only Memory. It utilizes the standard JEDEC pinout making it functionally compatible with the IS27C010, but with significantly faster access capability.

This superior random access capability results from a focused high-speed design. This offers users bipolar speeds with higher density, lower cost, and proven reliability. The device is ideal for use with the faster processors. Designers may take full advantage of high-speed digital signal processors and microprocessors by allowing code to be executed at full speed directly out of EPROM. Typical applications include laser printers, switching networks, graphics, workstations, high-speed modems, and digital signal processing.

The IS27HC010 uses ISSI 's write programming algorithm which allows the entire chip to be programmed in typically less than 30 seconds. This product is available inOne-Time Programmable (OTP) PDIP, PLCC, and TSOP packages over commercial and industrial temperature ranges.
