IS1002

Features: • Compliant with Bluetooth Specification 1.1/1.2• Full Bluetooth RF Interface & Lower Link Controller functions• BlueRF Interfaces to leading Radio ICs• Full-featured hardware link controller with low-power mode and efficient data movement architecture• ...

product image

IS1002 Picture
See larger image
SeekIC No. : 004378861 Detail

IS1002: Features: • Compliant with Bluetooth Specification 1.1/1.2• Full Bluetooth RF Interface & Lower Link Controller functions• BlueRF Interfaces to leading Radio ICs• Full-fe...

IS1002 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IS1002
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Compliant with Bluetooth Specification 1.1/1.2
• Full Bluetooth RF Interface & Lower Link Controller functions
• BlueRF Interfaces to leading Radio ICs
• Full-featured hardware link controller with low-power mode and efficient data movement architecture
• Hardware support for all Bluetooth 1.1 packet types including
   o Data packets: DM1, DM3, DM5; DH1, DH3, DH5; AUX, DV
   o Voice packets: HV1, HV2, HV3, DV
   o Link Control packets: ID, IQ, NULL, POLL, and FHS
• Flexible and robust voice CODEC algorithms (CVSD, A-law, -law),
   with 3 simultaneous SCO channels support.
• Baseband functions implemented in hardware such as Forward Error Correction
  (FEC), whitening, Header Error Check (HEC), Shorten Hamming Code, CRC
  generation/checking, and Encryption/De-encryption.
• Hardware permutation to speed up software Authentication.
• Point-to-multipoint support (Piconet).
• Scatternet support.
• BT1.2 Adaptive Frequency Hopping (AFH) supported.
• BT1.2 Fast Connection supported.
• Ultra-low low cost and power consumption features.
• Integrated Turbo 8051 processor.
• Integrated 32K bytes SRAM for common data buffer.
• Integrated 160K bytes Mask ROM for 8051 program memory.
• HCI universal connect interface provides access to other physical host interfaces
   (i.e. USB, UART.).
• Full-speed UART host interface.
• Selectable reference clock frequencies.
• Protocol Stack available, including drivers, link manager, and HCI.
• 48 QFN package


Application

ISSC IS1002 can be applied to short-range wireless connectivity. Typical applications could include headsets, laptop and desktop computers, digital cameras, PDA's, and wireless computer peripherals such as printers and wireless LAN cards.

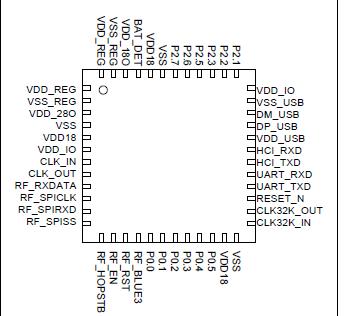

Pinout

Connection Diagram


Description

The ISSC IS1002 is a highly integrated Bluetooth baseband controller providing capability for high data rate, short-range wireless communications in the 2.4 GHz ISM band. It is fully compliant with version 1.1 of Bluetooth specification and some important BT1.2 features. Specially engineered for low power consumption and cost effective solution, the ISSC IS1002 integrates a baseband controller, HCI controller, and Audio controller. It also integrates a Turbo 8051 processor with 160K mask ROM for program memory and 32K SRAM for data memory.

The ISSC IS1002 is also available with a Bluetooth compliant protocol stack, including hardware drivers, link manager (LM), and host controller interface (HCI).
