IS-2100ARH

Features:

• Electrically Screened to DSCC SMD # 5962-99536
• QML Qualified per MIL-PRF-38535 Requirements
• Radiation Environment
- Maximum Total Dose . . . . . . . . . . . . . . . . . 300krad(SI)
- DI RSG Process Provides Latch-up Immunity
- SEU Rating. . . . . . . . . . . . . . . . . . . . . . 82MeV/mg/cm2
- Vertical Device Architecture Reduces Sensitivity to Low Dose Rates
• Bootstrap Supply Max Voltage to 150V
• Drives 1000pF Load at 1MHz with Rise and Fall Times of 30ns (Typ)
• 1.5A (Typ) Peak Output Current
• Independent Inputs for Non-Half Bridge Topologies
• Low DC Power Consumption . . . . . . . . . . . . . 60mW (Typ)
• Operates with VDD = VCC Over 12V to 20V Range
• Low-side Supply Undervoltage Protection




Application

• High Frequency Switch-Mode Power Supplies
• Drivers for Inductive Loads
• DC Motor Drivers

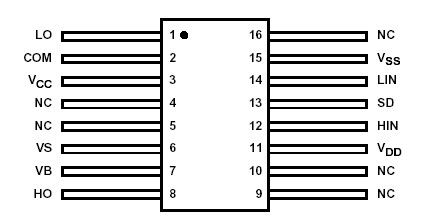

Pinout






Description

The Radiation Hardened IS-2100ARH is a high frequency, 130V Half Bridge N-Channel MOSFET Driver IC, which is functionally similar to industry standard 2110 types. The lowside and high-side gate drivers are independently controlled. This gives the user maximum flexibility in dead-time selection and driver protocol. In addition, the device has on-chip error detection and correction circuitry, which monitors the state of the high-side latch and compares it to the HIN signal. If they disagree, a set or reset pulse is generated to correct the high-side latch. This feature protects the high-side latch from single event upsets (SEUs). Specifications for Rad Hard QML devices are controlled by the Defense Supply Center in Columbus (DSCC). The SMD numbers listed here must be used when ordering. Detailed Electrical Specifications for the IS-2100ARH are contained in SMD 5962-99536. A hotlink is provided on our website for downloading.
