Product Details

Description



Features:

Hermetically Sealed
Electrically Isolated
Simple Drive Requirements
Ease of Paralleling

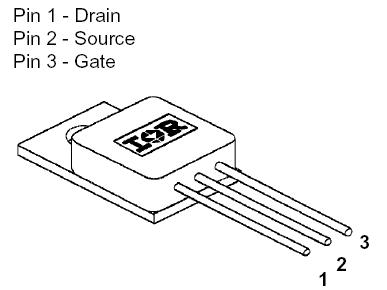

Pinout

Connection Diagram


Specifications

  Parameter IRFY9140CM Units
ID @ VGS= -10V, TC = 25°C Continuous Drain Current -15.8 A
ID @ VGS= -10V, TC = 100°C Continuous Drain Current -10
IDM Pulsed Drain Current -60
PD @ TC = 25°C Max. Power Dissipation 100 W
  Linear Derating Factor 0.8 W/K
VGS Gate-to-Source Voltage ±20 V
EAS Single Pulse Avalance Energy 640 mJ
IAR Avalance Current -15.8 A
EAR Repetitive Avalanche Energy 10 mJ
dv/dt Peak Diode Recovery dv/dt -5.5 V/ns
TJ
Tstg		 Operating Junction
Storage Temperature Range		 -55 to 150 °C
  Lead Temperature              300 (0.063 in (1.6mm) from case for 10 sec)
  Weight   g
