IRF7342TRPBF, US $ .35-.88 , International Rectifier, IRF7342TRPBF DataSheet download, circuit diagram from SeekIC.com

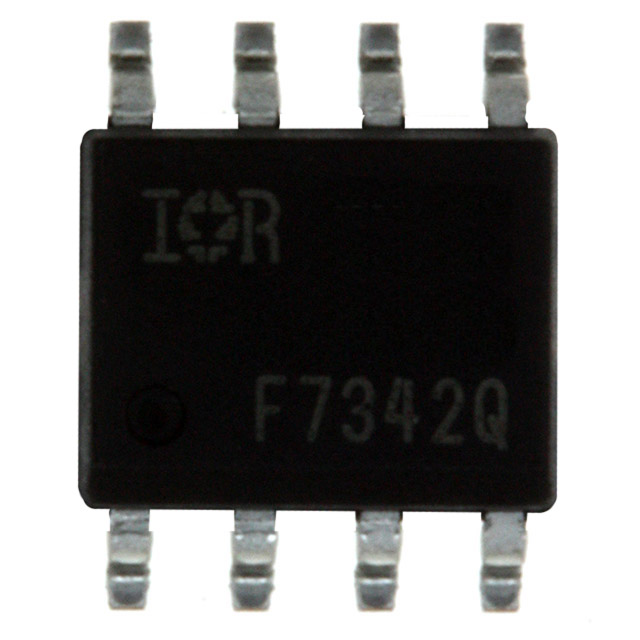

See larger image

SeekIC No. : 00149343 Detail

IRF7342TRPBF: MOSFET MOSFT DUAL PCh -55V 3.4A

IRF7342TRPBF Data Sheet

US $ .35~.88 / Piece | Get Latest Price

Part Number:: IRF7342TRPBF
Mfg:: International Rectifier
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$.88
$.55
$.37
$.35

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

IRF710 evaluate
US $.73 - .79 / Piece

MOSFET N-Chan 400V 2.0 Amp
IRF710, SiHF710 evaluate
DescriptionPower MOSFET IRF710, SiHF710
IRF710_R4943 evaluate
MOSFET TO-220AB

Product Details

Quick Details

Transistor Polarity :	P-Channel	Drain-Source Breakdown Voltage :	- 55 V
Gate-Source Breakdown Voltage :	20 V	Continuous Drain Current :	- 3.4 A
Configuration :	Dual	Mounting Style :	SMD/SMT
Package / Case :	SOIC-8	Packaging :	Reel

Description

Resistance Drain-Source RDS (on) :
Maximum Operating Temperature :
Mounting Style : SMD/SMT
Packaging : Reel
Transistor Polarity : P-Channel
Gate-Source Breakdown Voltage : 20 V
Package / Case : SOIC-8
Configuration : Dual
Continuous Drain Current : - 3.4 A
Drain-Source Breakdown Voltage : - 55 V

Parameters:

Technical/Catalog Information	IRF7342TRPBF
Vendor	International Rectifier (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	2 P-Channel (Dual)
Drain to Source Voltage (Vdss)	55V
Current - Continuous Drain (Id) @ 25° C	3.4A
Rds On (Max) @ Id, Vgs	105 mOhm @ 3.4A, 10V
Input Capacitance (Ciss) @ Vds	690pF @ 25V
Power - Max	2W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	38nC @ 10V
Package / Case	8-SOIC (3.9mm Width)
FET Feature	Logic Level Gate
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IRF7342TRPBF IRF7342TRPBF IRF7342PBFCT ND IRF7342PBFCTND IRF7342PBFCT
