IR51HD420

Series: -
Number of Outputs: 1
Operating Temperature: -40°C ~ 125°C
Input Type: Inverting
Current - Peak Output: -
Type: Half Bridge
Mounting Type: Through Hole
Packaging: Tube
On-State Resistance: 3 Ohm
Manufacturer: International Rectifier
Current - Output / Channel: 700mA
Voltage - Supply: 10 V ~ 15.6 V
Package / Case: 9-SIP (7 leads)
Supplier Device Package: 9-SIP, 7 Leads


Features:

·Output Power MOSFETs in half-bridge configuration 500V Rated Breakdown Voltage
·High side gate drive designed for bootstrap operation
·Bootstrap diode integrated into package
·Accurate timing control for both Power MOSFETs
   Matched delay to get 50% duty cycle
   Matched deadtime of 1.2us
·Internal oscillator with programmable frequency
·Zener clamped Vcc for offline operation
·Half-bridge output is out of phase with R T

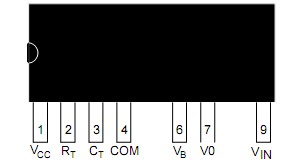

Pinout




Specifications

Symbol	Parameter	Min.	Max.	Units
	Definition
VIN	High Voltage Supply	-0.3	500	V
VB	High Side Floating Supply Absolute Voltage	-0.3	525
VO	Half-Bridge Output Voltag	-0.3	VIN + 0.3
VRT	RT Voltage	-0.3	VCC + 0.3
VCT	TC Voltage	-0.3	VCC + 0.3
ICC	Supply Current (Note 1)	---	25	mA
IRT	RT Output Current	-5	5
dv/dt	Peak Diode Recovery dv/dt	---	3.5	V/ns
PD	Package Power Dissipation @ TA +25	---	2.00	W
RJA	Thermal Resistance, Junction to Ambient	---	60	/W
TJ	Junction Temperature	-55	150
TS	Storage Temperature	-55	150
TL	Lead Temperature (Soldering, 10 seconds)	---	300

Description

The IR51HD420 is a high voltage, high speed, self- oscillating half-bridge. Proprietary HVIC and latch immune CMOS technologies, along with the  HEXFET® power MOSFET technology, enable ruggedized single package construction. The front-end features a programmable oscillator which functions similar to the CMOS 555 timer. The supply to the control circuit has a zener clamp to simplify offline operation. The output features two HEXFETs in a half-bridge configuration with an internally set deadtime designed for minimum cross-conduction in the half-bridge. Propagation delays of the IR51HD420 for the high and low side power MOSFETs are matched to simplify use in 50% duty cycle applications. The device can operate up to 500 volts.

Parameters:

Technical/Catalog Information	IR51HD420
Vendor	International Rectifier
Category	Integrated Circuits (ICs)
Package / Case	9-SIP (7 leads)
Mounting Type	Through Hole
Type	Half Bridge
Voltage - Supply	10 V ~ 15.6 V
On-State Resistance	3 Ohm
Current - Output / Channel	700mA
Current - Peak Output	-
Packaging	Tube
Input Type	Inverting
Number of Outputs	1
Operating Temperature	-40°C ~ 125°C
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	IR51HD420 IR51HD420
