IR3840MTRPBF

DC/DC Switching Regulators 12A SupIRBuck Reg 250-1500kHz, 1.5-16V

product image

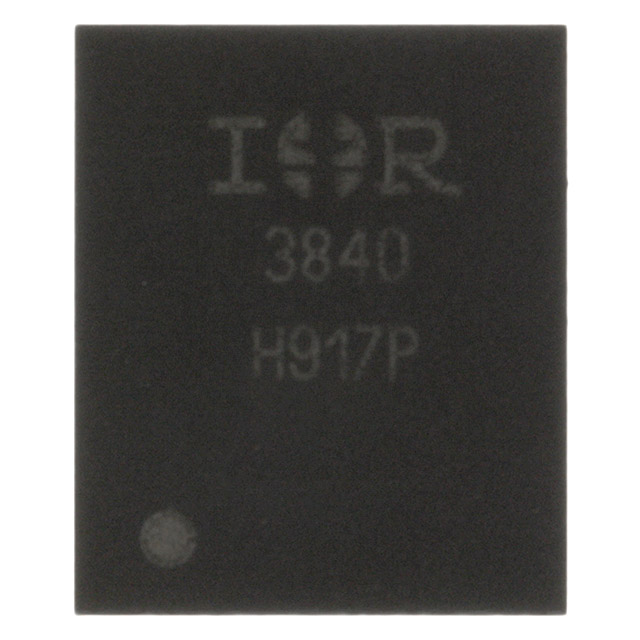

IR3840MTRPBF Picture
See larger image
SeekIC No. : 00499726 Detail

IR3840MTRPBF: DC/DC Switching Regulators 12A SupIRBuck Reg 250-1500kHz, 1.5-16V

IR3840MTRPBF Data Sheet

floor Price/Ceiling Price

US $ 1.4~1.4 / Piece | Get Latest Price
Part Number:
IR3840MTRPBF
Mfg:
International Rectifier
Supply Ability:
5000

Price Break

  • Qty
  • 0~2995
  • 2995~4000
  • Unit Price
  • $1.4
  • $1.4
  • Processing time
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Input Voltage MAX : 16 V Switching Frequency : 250 KHz to 1.5 MHz
Output Voltage : 0.7 V to 14.4 V Output Current : 12 A
Number of Outputs : 1 Maximum Operating Temperature : + 125 C
Mounting Style : SMD/SMT Package / Case : Power QFN EP

Description

Number of Outputs : 1
Maximum Operating Temperature : + 125 C
Mounting Style : SMD/SMT
Output Current : 12 A
Input Voltage MAX : 16 V
Switching Frequency : 250 KHz to 1.5 MHz
Output Voltage : 0.7 V to 14.4 V
Package / Case : Power QFN EP


Parameters:

Technical/Catalog InformationIR3840MTRPBF
VendorInternational Rectifier
CategoryIntegrated Circuits (ICs)
TypeStep-Down (Buck)
Number of Outputs1
Voltage - Input1.5 ~ 16 V
Voltage - Output0.7 ~ 14.4 V
Current - Output12A
Power - Output2.6W
Package / Case15-QFN
PackagingTape & Reel (TR)
Internal Switch(s)Yes
SynchronousYes
Rds (On)5.9 mOhm (Bottom), 8.3 mOhm (Top)
Operating Temperature-40°C ~ 125°C
Frequency - Switching250kHz ~ 1.5MHz
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names IR3840MTRPBF
IR3840MTRPBF
