IR3094PBF

*0.85V Reference Voltage
*3A GATELX Pull Down Drive Capability
*Programmable 100KHz to 540KHz oscillator
*Programmable Voltage Positioning (can be disabled)
*Programmable Softstart
*Programmable Hiccup Over-Current Protection with Delay to prevent false triggering
*Simplified Powergood provides indication of proper operation and avoids false triggering
*Operates up to 16V converter input with 7.5V Under-Voltage Lockout
*4.36V Under-Voltage Lockout threshold for gate driver voltage
*Adjustable Voltage, 150mA Bias Regulator provides MOSFET Drive Voltage
*Enable Input
*OVP Flag Output detects high side fet short at powerup
*Separate OVP sense line to sense the output voltage and latched OVP with protection
*Inductor DCR sensing for current sensing will support up to 5.1V output applications

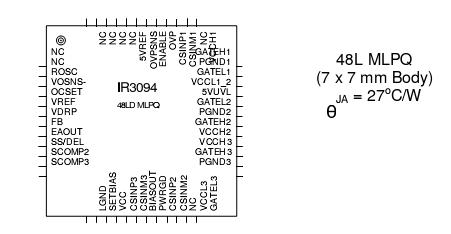

*Available 48L MLPQ package

   The IR3094PBF Control IC provides a full featured, cost effective, single chip solution to offers a compact, efficient solution for high current POL converters. Control and 3 Phase Gate Drive functions are integrated into a single space-saving IC.
