IR3092

Features: `5 bit or 6 bit VID with 0.5% overall system accuracy`Selectable VID Code for AMD Opteron, AMD Athlon or Intel VR10.X`Programmable Slew Rate response to On-the-Fly VID Code Changes`3.5A Gate Drive Capability`Programmable 100KHz to 540KHz oscillator`Programmable Voltage Positioning (can...

product image

IR3092 Picture
See larger image
SeekIC No. : 004376189 Detail

IR3092: Features: `5 bit or 6 bit VID with 0.5% overall system accuracy`Selectable VID Code for AMD Opteron, AMD Athlon or Intel VR10.X`Programmable Slew Rate response to On-the-Fly VID Code Changes`3.5A ...

IR3092 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IR3092
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`5 bit or 6 bit VID with 0.5% overall system accuracy
`Selectable VID Code for AMD Opteron, AMD Athlon or Intel VR10.X
`Programmable Slew Rate response to "On-the-Fly" VID Code Changes
`3.5A Gate Drive Capability
`Programmable 100KHz to 540KHz oscillator
`Programmable Voltage Positioning (can be disabled)
`Programmable Softstart
`Programmable Hiccup Over-Current Protection with Delay to prevent false triggering
`Simplified Powergood provides indication of proper operation and avoids false triggering
`Operates up to 21V input with 7.8V Under-Voltage Lockout
`5V UVL with 4.3V Under-Voltage Lockout threshold
`Adjustable Voltage, 150mA Bias Regulator provides MOSFET Drive Voltage
`Enable Input
`OVP Output
`Available in a 48L MLPQ package

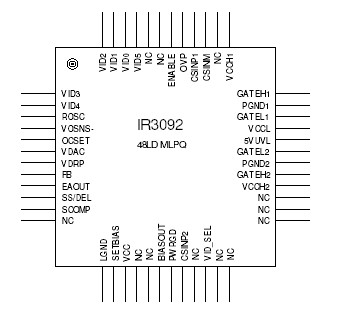

Pinout

Connection Diagram


Specifications

Operating Junction Temperature...............................150
Storage Temperature Range........................-65 to 150


Description

The IR3092 Control IC provides a full featured, single chip solution to implement robust power conversion solutions for three different microprocessor families; 1) AMD Opteron, 2) AMD Athlon or 3) Intel VR10.X family of processors. The user can select the appropriate VID range with a single pin. PWM Control and 2 phase gate drive functions are integrated into a single IC. In addition to CPU power, the IR3092 offers a compact, efficient solution for high current POL converters.
