IR2238Q

Series: -
Number of Outputs: 1
Mounting Type: Surface Mount
Evaluation Tools: -
Voltage - Load: -
Packaging: Tray
Manufacturer: International Rectifier
Applications: AC Motor Controller, 3 Phase
Package / Case: 64-MQFP, 64-PQFP
Current - Output: 350mA
Voltage - Supply: 12.5 V ~ 20 V
Operating Temperature: -20°C ~ 115°C
Supplier Device Package: 64-MQFP (20x14)


Features:

• Floating channel up to +1200V
• "soft" over-current shutdown turns off output
• Integrated desaturation circuit
• Two stage turn on output for di/dt control
• Integrated brake IGBT driver with protection
• Voltage feedback sensing function
• Separate pull-up/pull-down output drive pins
• Matched delay outputs
• Under voltage lockout with hysteresis band
• Programmable deadtime
• Hard shutdown function

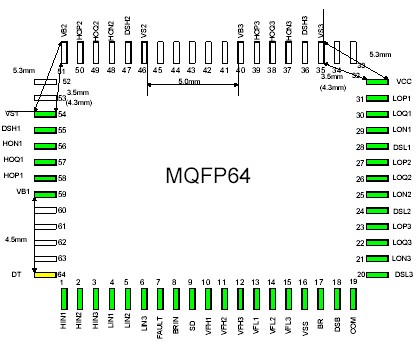

Pinout




Specifications

Symbol	Definition	Min.	Max.	Units
VS	High side offset voltage	VB 1,2,3 - 25	VB 1,2,3 + 0.3	V
VB	High side floating supply voltage	-0.3	1225
VHO	High side floating output voltage (HOP, HON, HOQ)	VS1,2,3 - 0.3	VB 1,2,3 + 0.3
VCC	Low side and logic fixed supply voltage	-0.3	25
VSS	Logic ground	VCC - 25	VCC + 0.3
VLO	Low side output voltage (LOP, LON, LOQ)	-0.3	VCC + 0.3
VIN	Logic input voltage (HIN/N, LIN, BRIN/N, SD)	VSS - 0.3	VCC + 0.3 or VSS +15 Which ever is lower
VFLT	FAULT/N output voltage	VSS - 0.3	VCC + 0.3
VF	Feedback output voltage	VSS - 0.3	VCC + 0.3
VDSH	High side desat/feedback input voltage	VB 1,2,3 - 25	VB 1,2,3 + 0.3
VDSL	Low side desat/feedback input voltage	- 0.3	VCC + 0.3
VBR	Brake output voltage	-0.3	VCC + 0.3
dVs/dt	Allowable offset voltage slew rate	-	50	V/ns
PD	Package power dissipation @ TA +25	-	2.0	W
RthJA	Thermal resistance, junction to ambient	-	60	/W
TJ	Junction temperature	-	125
TS	Storage temperature	-55	150
TL	Lead temperature (soldering, 10 seconds)	-	300

Description

The IR2238Q is a high voltage, 3-phase IGBT driver best suited for AC motor drive applications. Integrated desaturation logic provides all mode of overcurrent protection, including ground fault protection. Soft shutdown is predominantly initiated in the event of overcurrent followed by turn-off of all six outputsf. A shutdown input is provided for a customized shutdown function. The DT pin allows external resistor to program the deadtime. Output drivers have separate turn on/off pins with two stage turn-on output to achieve the desired di/dt switching level of IGBT. Voltage feedback of the IR2238Q provides accurate volts *seconds measurement.

Parameters:

Technical/Catalog Information	IR2238Q
Vendor	International Rectifier
Category	Integrated Circuits (ICs)
Applications	AC Motor Controller, 3 Phase
Number of Outputs	1
Voltage - Supply	12.5 V ~ 20 V
Voltage - Load	-
Current - Output	350mA
Operating Temperature	-20°C ~ 115°C
Package / Case	64-MQFP
Packaging	Tray
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IR2238Q IR2238Q
