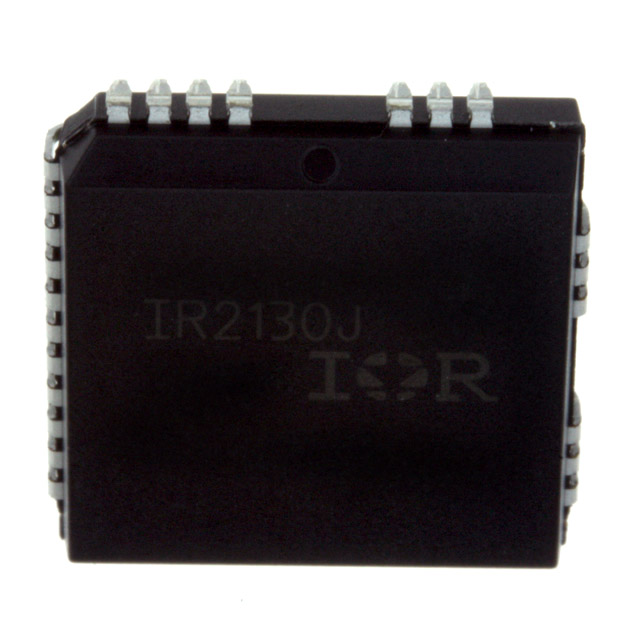

IR2130PbF

Maximum Operating Temperature : + 125 C
Product : MOSFET Gate Drivers
Packaging : Tube
Mounting Style : Through Hole
Rise Time : 125 ns
Supply Voltage - Max : 20 V
Supply Voltage - Min : 10 V
Fall Time : 55 ns
Supply Current : 30 uA
Package / Case : PDIP-28
Maximum Power Dissipation : 1500 mW
Type : 3 Phase Bridge Driver


Pinout




Description

The IR2130PBF is designed as a high voltage, high speed power MOSFET and IGBT driver with three independent high and low side referenced output channels. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 2.5V logic.

IR2130PBF has ten features. (1)Floating channel designed for bootstrap operation, fully operational to +600V, tolerant to negative transient voltage, dv/dt immune. (2)Gate drive supply range from 10V to 20V. (3)Undervoltage lockout for all channels. (4)Over-current shutdown turns off all six driver. (5)Independent half-bridge drivers. (6)Matched propagation delay for all channels. (7)2.5V logic compatible. (8)Outputs out of phase with inputs. (9)Cross-conduction prevention logic. (10)Also available lead-free. Those are all the main features.

Some absolute maximum ratings of IR2130PBF have been concluded into several points as follow. (1)Its high side floating supply voltage would be min -0.3V and max 625V. (2)Its high side floating offset voltage would be min Vb1,2,3-25V and max Vb1,2,3+0.3V. (3)Its high side floating output voltage would be Vs1,2,3-0.3V and max Vb1,2,3+0.3V. (4)Its low side and logic fixed supply voltage would be min -0.3V and max 25V. (5)Its logic ground would be min Vcc-25V and max Vcc+0.3V. (6)Its low side output voltage would be min -0.3V and max Vcc+0.3V. (7)Its logic input voltage would be min Vss-0.3V and max Vcc+0.3V. (8)Its operational amplifier output voltage would be min Vss-0.3V and max Vcc+0.3V. (9)Its operational amplifier inverting input voltage would be min Vss-0.3V and max Vcc+0.3V. (10)Its allowable offset supply voltage transient would be max 50V/ns. (11)Its power dissipation would be max 1.5W. And so on. It should be noted that stresses above those listed in absolute maximum ratings may cause permanent damage to device. If you have any question or suggestion or want to know more information about IR2130PBF please visit our website and contact us for details. Thank you!

Parameters:

Technical/Catalog Information	IR2130PBF
Vendor	International Rectifier
Category	Integrated Circuits (ICs)
Configuration	3 Phase Bridge
Voltage - Supply	10 V ~ 20 V
Current - Peak	200mA
Delay Time	675ns
Package / Case	28-DIP (600 mil)
Packaging	Tube
Number of Outputs	3
Input Type	Inverting
Number of Configurations	1
Operating Temperature	-40°C ~ 125°C
High Side Voltage - Max (Bootstrap)	600V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IR2130PBF IR2130PBF
