IR2110-2PBF, US $ 1.88-3.86 , International Rectifier, IR2110-2PBF DataSheet download, circuit diagram from SeekIC.com

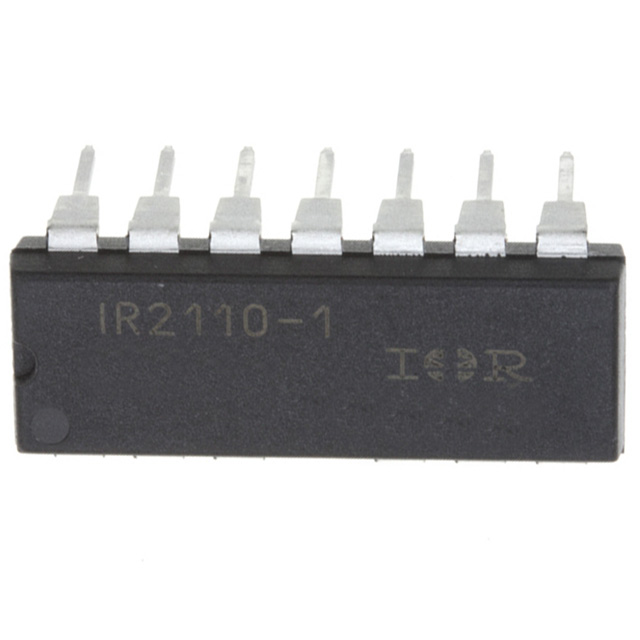

See larger image

SeekIC No. : 00538123 Detail

IR2110-2PBF: Power Driver ICs

IR2110-2PBF Data Sheet

US $ 1.88~3.86 / Piece | Get Latest Price

Part Number:: IR2110-2PBF
Mfg:: International Rectifier
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$3.86
$2.38
$1.97
$1.88

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

IR2101 evaluate
IC DRIVER HIGH/LOW SIDE 8-DIP
IR2101(S) evaluate
Features: • Floating channel designed for bootstrap operation Fully operational to +600V Tol...
IR21014 evaluate
IC DRIVER HIGH/LOW SIDE 14-DIP

Product Details

Quick Details

Product :	H-Bridge Drivers	Type :	High and Low Side Driver
Rise Time :	35 ns	Fall Time :	25 ns
Supply Voltage - Max :	20 V	Supply Voltage - Min :	10 V
Supply Current :	0.34 mA	Maximum Power Dissipation :	1600 mW
Maximum Operating Temperature :	+ 125 C	Mounting Style :	Through Hole
Package / Case :	PDIP-14	Packaging :	Tube

Description

Maximum Operating Temperature : + 125 C
Packaging : Tube
Type : High and Low Side Driver
Product : H-Bridge Drivers
Mounting Style : Through Hole
Supply Voltage - Max : 20 V
Supply Voltage - Min : 10 V
Rise Time : 35 ns
Fall Time : 25 ns
Package / Case : PDIP-14
Maximum Power Dissipation : 1600 mW
Supply Current : 0.34 mA

Parameters:

Technical/Catalog Information	IR2110-2PBF
Vendor	International Rectifier
Category	Integrated Circuits (ICs)
Configuration	High and Low Side, Independent
Voltage - Supply	10 V ~ 20 V
Current - Peak	2.5A
Delay Time	120ns
Package / Case	16-DIP (300 mil, 14 Leads)
Packaging	Tube
Number of Outputs	2
Input Type	Non-Inverting
Number of Configurations	1
Operating Temperature	-40°C ~ 125°C
High Side Voltage - Max (Bootstrap)	500V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IR2110 2PBF IR21102PBF
