Position: Home  > All Categories> Integrated Circuits (ICs) > IR21084SPBF

IR21084SPBF

Power Driver ICs

product image

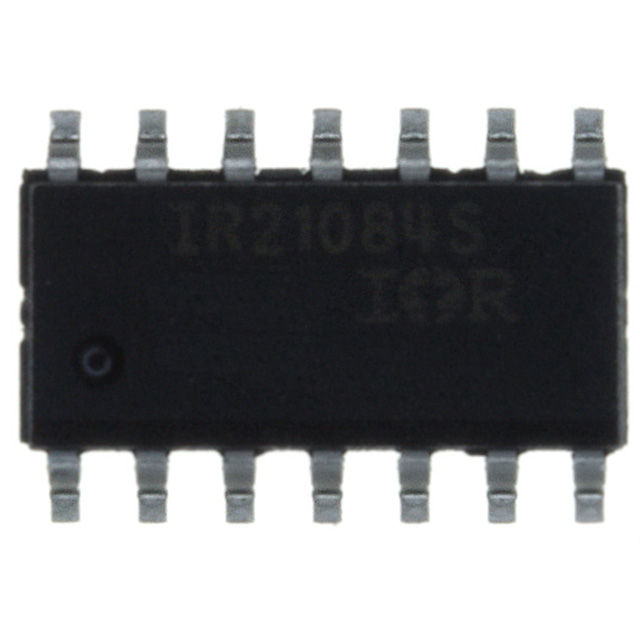

IR21084SPBF Picture
See larger image
SeekIC No. : 00538156 Detail

IR21084SPBF: Power Driver ICs

IR21084SPBF Data Sheet

floor Price/Ceiling Price

US $ 1.01~2.07 / Piece | Get Latest Price
Part Number:
IR21084SPBF
Mfg:
International Rectifier
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $2.07
  • $1.27
  • $1.05
  • $1.01
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Half-Bridge Drivers Type : Half-Bridge Driver
Rise Time : 220 ns Fall Time : 80 ns
Supply Voltage - Max : 20 V Supply Voltage - Min : 10 V
Supply Current : 1.6 mA Maximum Power Dissipation : 1000 mW
Maximum Operating Temperature : + 125 C Mounting Style : SMD/SMT
Package / Case : SOIC-14 Packaging : Tube

Description

Mounting Style : SMD/SMT
Product : Half-Bridge Drivers
Maximum Operating Temperature : + 125 C
Packaging : Tube
Supply Voltage - Max : 20 V
Supply Voltage - Min : 10 V
Package / Case : SOIC-14
Fall Time : 80 ns
Maximum Power Dissipation : 1000 mW
Type : Half-Bridge Driver
Rise Time : 220 ns
Supply Current : 1.6 mA


Parameters:

Technical/Catalog InformationIR21084SPBF
VendorInternational Rectifier
CategoryIntegrated Circuits (ICs)
ConfigurationHalf Bridge
Voltage - Supply10 V ~ 20 V
Current - Peak200mA
Delay Time220ns
Package / Case14-SOIC (3.9mm Width), 14-SOL
PackagingTube
Number of Outputs2
Input TypeInverting and Non-Inverting
Number of Configurations1
Operating Temperature-40°C ~ 125°C
High Side Voltage - Max (Bootstrap)600V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names IR21084SPBF
IR21084SPBF
