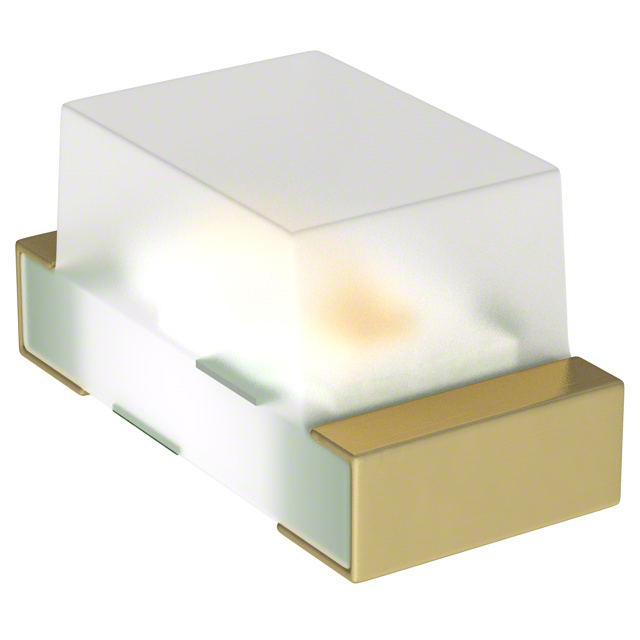

IR19-21C/TR8

Series: -
Orientation: Top View
Mounting Type: Surface Mount
Packaging: Cut Tape (CT)Alternate Packaging
Wavelength: 940nm
Voltage - Forward (Vf) Typ: 1.2V
Manufacturer: Everlight Electronics Co Ltd
Current - DC Forward (If): 65mA
Radiant Intensity (Ie) Min @ If: 0.7mW/sr @ 20mA
Viewing Angle: 150°
Package / Case: 0603 (1608 Metric)


Features:

·Small double-end package
·Low forward voltage
·Good spectral matching to Si photo detector
·Package in 8mm tape on 7" diameter reel
·Pb free
·The product itself will remain within RoHS compliant version.


Application

·PCB mounted infrared sensor
·Infrared emitting for miniature light barrier
·Floppy disk drive
·Optoelectronic switch
·Smoke detector


Specifications

Parameter	Symbol	Rating	Unit
Continuous Forward Current	IF	65	mA
Peak Forward Current	IFP	1.0	A
Operating Temperature	Topr	-25 to +85
Storage Temperature	Tstg	-40 to +85
Soldering Temperature	Tsol	260
Power Dissipation at(or below) 25Free Air Temperature	Pd	130	mW
Reverse Voltage	VR	5	V

Notes: *1:IFP Conditions--Pulse Width100s and Duty1%.
*2:Soldering time5 seconds.


Description

·IR19-21C/TR8 is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with flat top view lens.
·The device is spectrally matched with silicon photodiode and phototransistor.
