Product Details

Description



Features:

· Analogue Input 
    - 3 channels: sine/cosine/reference signal
 - Standard connection 1Vpp (differential)
 - Input frequency of up to 400kHz
· AD converter 
    - up to 1.25MS/s
 - Single-Ended Input 2.4Vpp
· Signal correction
 - Automatic gain and offset controller
 - External potentiometer for analogue phase correction
· Interpolation rates
 - 200, 160, 100, 80, 50, 40, 25, 20
· Measuring result outputs
 - 28 - Bit counter
 - 90° - square wave sequences
 - Error signal
· Configuration options
 - Via configuration pins
 - Via serial interface (SPI)
· Serial interface (SPI)
 - For Configuration and measuring value output
 - 16-Bit synchronous/asynchronous mode
 - Not required for low-cost minimal applications
· Parallel output
 - For measuring value output
 - 16-Bit wide
 - Up to 40MBit/s bandwidth
· Miscellaneous
 - Filter for suppressing edge noise at low speed input signals
 - Programmable interval time for adapting the circuit to low
· speed digital components
 - Two-level edge-controlled measuring trigger
 - Programmable sensor error response
·Package
 - TQFP64 (10mm x 10mm x 1mm) or DIE



Pinout

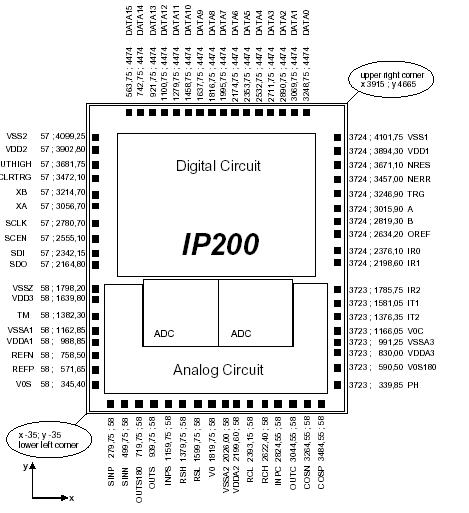

  Connection Diagram


Specifications

Power supply VDD ..................................0.3 to 7 V
Temperature*) .................................-55 to 125 °C
storage temperature .......................-55 to 155 °C
ESD .................................................................1 kV

*) with defined circuit Crossing these ratings can damage the IC; events of maximum supply voltage and maximum temperature at the same time have been to avoid.




Description

The IP200 interpolation circuit is designed for connection to incremental position and angle measuring systems with sine-shaped output signals with a 90° phase shift. It can be operated at a large number of transducer systems working according to the most varied measuring principles. With a maximum interpolation rate of 200 the IC is capable to split the input signal period into up to 200 segments. A counter value can be output via parallel or serial interface, respectively.

Different interfaces and flexible configuration types enable the use of the IP200 in single-chip interpolation systems, in microcontroller-based measuring devices and in multi-channel systems alike. Proprietary automatic gain and offset control, as well as the possibility of a analogue phase correction ensure a high measuring precision under industrial conditions. The integrated two-level measuring value trigger and the additional parallel high speed output makes the IC suitable for use in real time applications.
