IP1527A

Features: • 8 to 35V operation• 5.1V reference trimmed to ±1%• 100Hz to 500kHz oscillator range• Separate oscillator sync terminal• Adjustable deadtime control• Internal soft start• Input undervoltage lockout• Latching PWM to prevent multiple pulses&...

product image

IP1527A Picture
See larger image
SeekIC No. : 004375574 Detail

IP1527A: Features: • 8 to 35V operation• 5.1V reference trimmed to ±1%• 100Hz to 500kHz oscillator range• Separate oscillator sync terminal• Adjustable deadtime control• I...

IP1527A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IP1527A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 8 to 35V operation
• 5.1V reference trimmed to ±1%
• 100Hz to 500kHz oscillator range
• Separate oscillator sync terminal
• Adjustable deadtime control
• Internal soft start
• Input undervoltage lockout
• Latching PWM to prevent multiple pulses
• Dual source/sink output drivers


Pinout

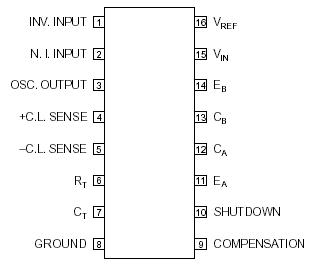

Connection Diagram


Specifications

+VIN Input Voltage ..............................................................+40V
Collector Voltage .................................................................+40V
Logic Inputs ...........................................................0.3 to +5.5V
Analogue Inputs ......................................................0.3 to +VIN
Output Current, Source or Sink .........................................500mA
Reference Output Load Current .......................Internally Limited
Oscillator Charging Current ..................................................5mA
PD Power Dissipation TA = 25°C ............................................1W
Derate @ TA > 50°C .....................................................10mW/°C
PD Power Dissipation TC = 25°C ............................................2W
Derate @ TC > 25°C ....................................................16mW/°C
TJ Operating Junction Temperature ....See Ordering Information
TSTG Storage Temperature Range ......................65 to +150°C
TL Lead Temperature (soldering, 10 seconds) ...............+300°C


Description

The IP1525A and IP1527A families of PWM switching regulator control circuits offer improved performance and lower parts count when used in designing switching power supplies. Included are 5.1 volt reference, error amplifier, adjustable dead-time oscillator with synchronisation capability, latched PWM comparator, totem-pole output drivers, shutdown, soft start, and undervoltage lockout.

The IP1525A and IP1527A differ only in output phasing. The IP1525A output is low when "off", while the IP1527A output is high when "off".
