IP1526

Features: • 8 to 35V operation• 5V reference trimmed to ±1%• 1Hz to 400kHz oscillator range• Dual 100mA source/sink outputs• Digital current limiting• Double pulse suppression• Programmable deadtime• Undervoltage lockout• Single Pulse metering&...

product image

IP1526 Picture
SeekIC No. : 004375572 Detail

IP1526: Features: • 8 to 35V operation• 5V reference trimmed to ±1%• 1Hz to 400kHz oscillator range• Dual 100mA source/sink outputs• Digital current limiting• Double puls...

floor Price/Ceiling Price

Part Number:
IP1526
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/30

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 8 to 35V operation
• 5V reference trimmed to ±1%
• 1Hz to 400kHz oscillator range
• Dual 100mA source/sink outputs
• Digital current limiting
• Double pulse suppression
• Programmable deadtime
• Undervoltage lockout
• Single Pulse metering
• Programmable soft start
• Wide current limit common mode range
• TTL/CMOS compatible logic ports
• Symmetry correction capability
• Guaranteed 6 unit synchronisation



Pinout

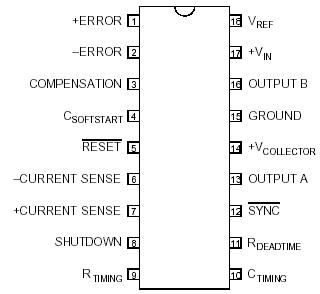

  Connection Diagram


Specifications

VIN Input Voltage ....................................................0 to +70°C
Collector Voltage .....................................................+8 to +35V
Sink/Source Load Current (Each Output) .............+4.5 to +35V
Reference Load Current .........................................0 to 100mA
Oscillator Frequency Range ......................................0 to 20mA
RT Oscillator Timing Resistor ..............................1Hz to 400kHz
CT Oscillator Timing Capacitor .............................2k to 150k
Available Deadtime Range @ 40kHz ..................470pF to 20F
Operating Ambient Temperature Range IP1526 .....3% to 50%
IP3526 ..............................................................55 to +125°C



Description

The IP1526 high performance monolithic pulse width modulator circuits are designed for fixed frequency switching regulators and other power control applications. Included in an 1 8-pin dual-in-line package are a temperature compensated voltage reference, sawtooth oscillator, error amplifier, pulse width modulator, pulse metering and steering logic, and two low impedance power drivers. Also included are protective features such as soft-start and under-voltage lockout, digital current limiting, double pulse inhibit, a data latch for single pulse metering, adjustable deadtime, and provision for symmetry correction inputs. For ease of interface, all digital control ports are TTL and B-series CMOS compatible. Active LOW logic design of the IP1526 allows wired-OR connections for maximum flexibility. This versatile device can be used to implement single-ended or push-pull switching regulators of either polarity, both transformerless and transformer coupled.
