IP1524

Features: • Guaranteed ±2% reference voltage tolerance• Guaranteed ±6% oscillator tolerance• Fully specified temperature performance• Guaranteed 10mV/1000 hours long term stability• Interchangeable with SG1524 seriesPinoutSpecifications+VIN Input Voltage ................

product image

IP1524 Picture
SeekIC No. : 004375568 Detail

IP1524: Features: • Guaranteed ±2% reference voltage tolerance• Guaranteed ±6% oscillator tolerance• Fully specified temperature performance• Guaranteed 10mV/1000 hours long term sta...

floor Price/Ceiling Price

Part Number:
IP1524
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Guaranteed ±2% reference voltage tolerance
• Guaranteed ±6% oscillator tolerance
• Fully specified temperature performance
• Guaranteed 10mV/1000 hours long term stability
• Interchangeable with SG1524 series



Pinout

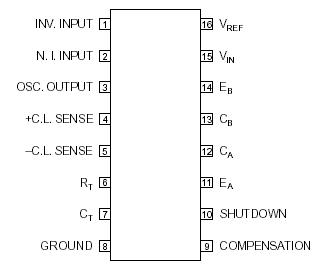

  Connection Diagram


Specifications

+VIN Input Voltage .......................................................+40V
Collector Voltage ..........................................................+40V
Output Current (each transistor) ...............................100mA
Reference Load Current ...........................Internally Limited
Oscillator Charging Current  ..........................................5mA
Shut Down Pin Voltage ...............................................+5.5V
Current Limit Sense Common Mode Range ....1.0 to +1.0V
PD Power Dissipation TA = 25°C .....................................1W
Derate @ TA > 50°C .............................................10mW/°C
PD Power Dissipation TC = 25°C ..........................16mW/°C
Derate @ TC > 25°C ....................See Ordering Information
TJ Operating Junction Temperature .............65 to +150°C
TSTG Storage Temperature Range ...........................+300°C
TL Lead Temperature (soldering, 10 seconds) .........+300°C



Description

The IP1524 series of PWM switching regulator control circuits contains all the functions required to implement singleended or push-pull switching regulators. Included are voltage reference, error amplifer, oscillator, PWM comparator, output drivers, current limiting and shutdown circuitry. Although functionally indentical to the SG1524 series, SEMELAB has incorporated several improvements to the IP1524 allowing tighter and more complete specification of electrical performance.
