INA166

Features:

` LOW NOISE: 1.3nVHz at 1kHz
` LOW THD+N: 0.09% at 1kHz
` WIDE BANDWIDTH: 450kHz
` WIDE SUPPLY RANGE: ±4.5V to ±18V
` HIGH CMR: > 100dB
` GAIN SET WITH EXTERNAL RESISTOR
` SO-14 SURFACE-MOUNT PACKAGE


Application

· MOVING-COIL TRANSDUCER AMPLIFIERS
· DIFFERENTIAL RECEIVERS
· BRIDGE TRANSDUCER AMPLIFIERS
· MICROPHONE AND HYDROPHONE PREAMPS

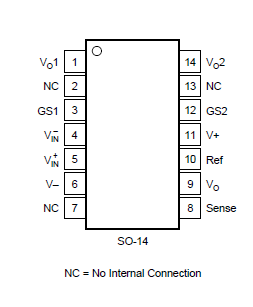

Pinout




Specifications

Power Supply Voltage ....................................................................... ±18V
Signal Input Terminals, Voltage(2) .................. (V) 0.5V to (V+) + 0.5V
Current(2) ..................................................... 10mAOutput Short-Circuit to
                                    Ground ................................................ Continuous
Operating Temperature ................................................... 55 to +125
Storage Temperature ...................................................... 55 to +125
Junction Temperature ..................................................................... +150
Lead Temperature (soldering, 10s) ................................................ +300

NOTES: (1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not implied. (2) Input terminals are diode-clamped to the power-supply rails. Input signals that can swing more than 0.5V beyond the supply rails should be current limited to 10mA or less.

Description

The INA166 is a very low-noise, low-distortion, monolithic instrumentation amplifier. Its current-feedback circuitry achieves very wide bandwidth and excellent dynamic response over a wide range of gain. It is ideal for low-level signals such as microphones or hydrophones.Many industrial, instrumentation, and medical applications also benefit from its low noise and wide bandwidth.

Unique distortion cancellation circuitry reduces distortion to extremely low levels, even in high gain.

The INA166 provides near-theoretical noise performance for 200 source impedance. Its differential input, low noise, and low distortion provide superior performance as a low-level signal amplifier.

The INA166 is available in a space-saving SO-14 surface-mount package, specified for operation over the 40 to +85 temperature range.
