INA103

Features: ` LOW NOISE: 1nVHz ` LOW THD+N: 0.0009% at 1kHz, G = 100` HIGH GBW: 100MHz at G = 1000` WIDE SUPPLY RANGE: ±9V to ±25V` HIGH CMRR: >100dB` BUILT-IN GAIN SETTING RESISTORS: G = 1, 100` UPGRADES AD625Application· HIGH QUALITY MICROPHONE PREAMPS (REPLACES TRANSFORMERS)· MOVING-COIL PREAM...

product image

INA103 Picture
See larger image
SeekIC No. : 004375344 Detail

INA103: Features: ` LOW NOISE: 1nVHz ` LOW THD+N: 0.0009% at 1kHz, G = 100` HIGH GBW: 100MHz at G = 1000` WIDE SUPPLY RANGE: ±9V to ±25V` HIGH CMRR: >100dB` BUILT-IN GAIN SETTING RESISTORS: G = 1, 100` U...

INA103 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
INA103
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` LOW NOISE: 1nVHz
` LOW THD+N: 0.0009% at 1kHz, G = 100
` HIGH GBW: 100MHz at G = 1000
` WIDE SUPPLY RANGE: ±9V to ±25V
` HIGH CMRR: >100dB
` BUILT-IN GAIN SETTING RESISTORS: G = 1, 100
` UPGRADES AD625


Application

· HIGH QUALITY MICROPHONE PREAMPS (REPLACES TRANSFORMERS)
· MOVING-COIL PREAMPLIFIERS
· DIFFERENTIAL RECEIVERS
· AMPLIFICATION OF SIGNALS FROM: Strain Gages (Weigh Scale Applications) Thermocouples Bridge Transducers


Pinout

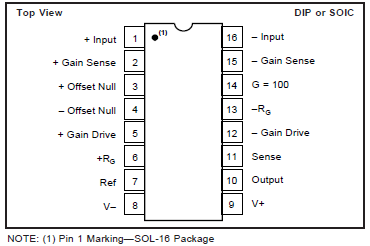

Connection Diagram


Specifications

Power Supply Voltage .................................................................. ±25V
Input Voltage Range, Continuous .................................................. ±VS
Operating Temperature Range: ...................................  40 to +85
Storage Temperature Range: ........................................40 to +85
Junction Temperature:
P, U Package .............................................................................. +125
Lead Temperature (soldering, 10s) ............................................ +300
Output Short Circuit to Common .......................................... Continuous

NOTE: (1) Stresses above these ratings may cause permanent damage.


Description

The INA103 is a very low noise, low distortion monolithic instrumentation amplifier. Its current-feedback circuitry achieves very wide bandwidth and excellent dynamic response. It is ideal for low-level audio signals such as balanced low-impedance microphones.

The INA103 provides near-theoretical limit noise performance for 200W source impedances. Many industrial applications also benefit from its low noise and wide bandwidth.

Unique distortion cancellation circuitry reduces distortion to extremely low levels, even in high gain. Its balanced input, low noise and low distortion provide superior performance compared to transformer-coupled microphone amplifiers used in professional audio equipment.

The INA103's wide supply voltage (±9 to ±25V) and high output current drive allow its use in high-level audio stages as well. A copper lead frame in the plastic DIP assures excellent thermal performance.
