IN74VHC240

Features:

• Supply voltage range 2.0 to 5.5 V.
• Output current 8 mA.
• Low consumption current: 0.2 mkA (typical value) at = 25 °.
• Latchup current not less than 300 mA at = 85 °.
• Tolerable value of static potential not less than 2000 V as per human body model (HBM) and not less than 200 V as per machine model ().
• Ambient operation temperature minus 40 to plus 85 °.
• Balanced signal propagation delay.
• Ensures voltage exceeding mode on input
• Low noise level at the simultaneous switching of outputs in the same state: V_OLP = 0.8 V (max).
• For pins and functions, compatible with IN74HC240.

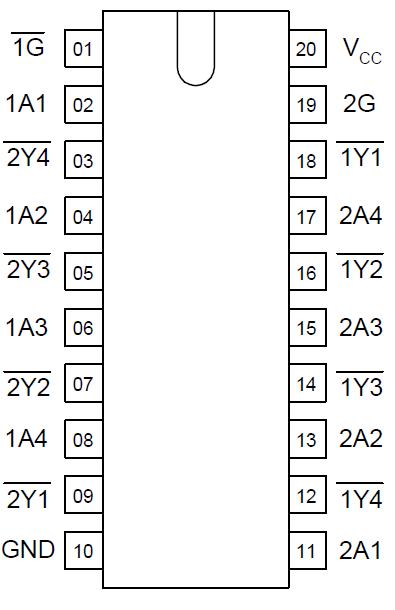

Pinout




Specifications

Parameter, unit	Symbol	Value
		min	max
Supply voltage, V	VCC	-0.5	7.0
Input voltage, V	Vin	-0.5	7.0
Output voltage, V	Vout	-0.5	Vcc+0.5V
Input diode current, mA	Iik		-20
Current of common output and supply output, mA	Icc		± 75
Output current, mA	Iout		± 25
Output diode current, mA	Iok		± 20
Dissipated power, mW	Pd		180

Description

IN74VHC240 is high-speed logic IC made by CMOS technology and designed for use in high-performance calculating systems with a wide supply voltage range.

As for operation speed, IN74VHC240 can be compared with equivalent bipolar ICs based on Schottky TTL and two times surpasses ICs of IN74 series.

IN74VHC240 tolerates operation under conditions when voltage on input is exceeded up to 7V without affecting characteristics and IC reliability. This possibility allows to use IN74VHC240 in radio-electronic devices for interfacing with supply voltages 5V and 3V, eliminate IC failure under supply voltage source emergency outage.

Use of output edge shaping block in the microcircuit allows to reduce noise amplitude of noises when switching outputs into the same state simultaneously.

Input and output levels of IN74VHC240 are compatible with CMOS levels
