Product Details

Description



Features:

• Supply voltage range 2.0 to 5.5 V.
• Output current 8 mA.
• Low consumption current: 0.2 mkA (typical value) at = 25 °.
• Latchup current not less than 300 mA at = 85 °.
• Tolerable value of static potential not less than 2000 V as per human body model (HBM) and not less than 200 V as per machine model ().
• Ambient operation temperature minus 40 to plus 85 °.
• Balanced signal propagation delay.
• Ensures voltage exceeding mode on input
• Low noise level at the simultaneous switching of outputs in the same state: VOLP = 0.8 V (max).
• For pins and functions, compatible with IN74125.


Pinout

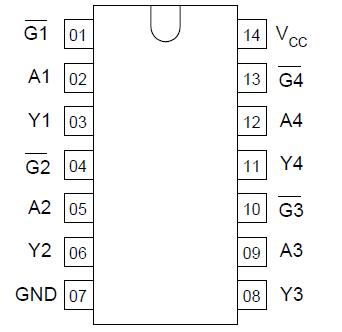

Connection Diagram
