IN74VHC02

Features: • Supply voltage range 2.0 to 5.5 V.• Output current 8 mA.• Low consumption current: 0.2 mkA (typical value) at = 25 °.• Latchup current not less than 300 mA at = 85 °.• Tolerable value of static potential not less than 2000 V as per human body model (HBM)...

product image

IN74VHC02 Picture
See larger image
SeekIC No. : 004375269 Detail

IN74VHC02: Features: • Supply voltage range 2.0 to 5.5 V.• Output current 8 mA.• Low consumption current: 0.2 mkA (typical value) at = 25 °.• Latchup current not less than 300 mA at =...

IN74VHC02 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IN74VHC02
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supply voltage range 2.0 to 5.5 V.
• Output current 8 mA.
• Low consumption current: 0.2 mkA (typical value) at = 25 °.
• Latchup current not less than 300 mA at = 85 °.
• Tolerable value of static potential not less than 2000 V as per human body model (HBM) and not less than 200 V as per machine model ().
• Ambient operation temperature minus 40 to plus 85 °.
• Balanced signal propagation delay.
• Ensures voltage exceeding mode on input
• Low noise level at the simultaneous switching of outputs in the same state: VOLP = 0.8 V (max).
• For pins and functions, compatible with IN7402.


Pinout

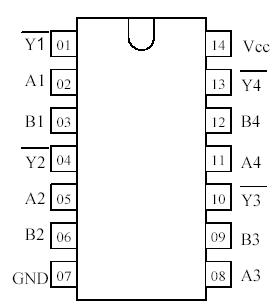

Connection Diagram


Specifications

Parameter, unit Symbol Value
min max
Supply voltage, V Symbol -0.5 7.0
Input voltage, V Vin -0.5 7.0
Output voltage, V Vout -0.5 Vcc+0.5V
Input diode current, mA Iik - -20
Current of common output and supply output, mA Icc ± 75
Output current, mA Iout ± 25
Output diode current, mA Iok ± 20
Dissipated power, mW Pd 180

Under absolute maximum conditions operation of microcircuit is not guaranteed. Operation is guaranteed under maximum conditions
