IN74LV620

Features: `Output voltage levels are compatible with input levels CMOS, N-MOS and TTL microcircuits.`Supply voltage range from 1.2 to 3.6 V.`Maximum input current: 1.0 mkA; 0.1 mkA at = 25 °.`Consumption current 8 mA.PinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Volta...

product image

IN74LV620 Picture
See larger image
SeekIC No. : 004375254 Detail

IN74LV620: Features: `Output voltage levels are compatible with input levels CMOS, N-MOS and TTL microcircuits.`Supply voltage range from 1.2 to 3.6 V.`Maximum input current: 1.0 mkA; 0.1 mkA at = 25 °.`Consu...

IN74LV620 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IN74LV620
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Output voltage levels are compatible with input levels CMOS, N-MOS and TTL microcircuits.
`Supply voltage range from 1.2 to 3.6 V.
`Maximum input current: 1.0 mkA; 0.1 mkA at = 25 °.
`Consumption current 8 mA.


Pinout

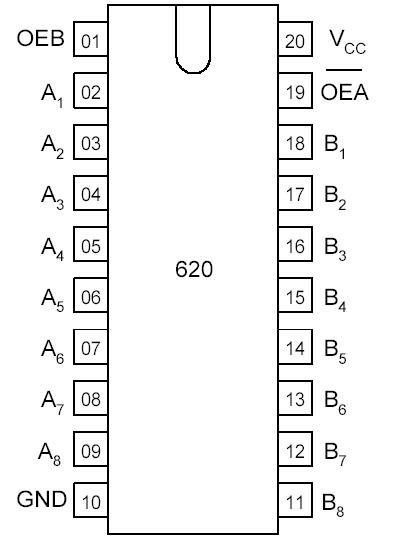

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage (Referenced to GND) from -0.5 to +5.0 V
IIK*1 DC input diode current ±20 V
IOK*2 DC output diode current ±50 mA
IO*3 DC output source or sink current
-bus driver outputs		 ±35 mA
ICC DC VCC current for types with
- bus driver outputs		 ±70 mA
IGND DC GND current for types with
- bus driver outputs		 ±70 mA
PD Power dissipation per package, plastic DIP+
SOIC
package+		 750
500		 mW
Tstg Storage Temperature from -65 to +150 °C
TL Lead Temperature, 1.5 mm (Plastic DIP Package), 0.3 mm (SO
Package) from Case for 4 Seconds		 260 °C
* Under absolute maximum conditions operation of microcircuits is not guaranteed. Operation under maximum conditions is guaranteed.
*1 If VI < -0.5V or VI > VCC + 0.5 V.
*2 If VO < -0.5V or VO > VCC + 0.5 V.
*3 If -0.5V < VO < VCC + 0.5 V.
*4 Under operation in the temperature range from 65° to 125°C value of dissipation power drops down - to 10 mW/°C for Plastic DIP  to 7 mW/°C for SOIC


Description

Microcircuits IN74LV620 are pin-to-pin compatible with microcircuits of series 74ALS620, 74HC620, 74HCT620. Input voltage levels are compatible with standard C-MOS levels
