Features:

• Wide Operating Voltage: 1.0÷5.5 V
• Input voltage levels are compatible with standard C-MOS levels
• Accepts TTL input levels between VCC =2.7 V and VCC =3.6 V
• Output voltage levels are compatible with input levels C-MOS, N-MOS and TTL microcircuits.
• Maximum input current: 1.0 mkA; 0.1 mkA at = 25 °.
• Consumption current 8 mA.


Pinout

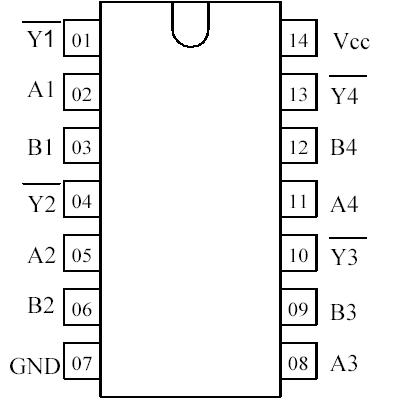

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage (Referenced to GND) from -0.5 to
+5.0		 V
IIK*1 DC input diode current ±20 V
IOK*2 DC output diode current ±50 mA
IO*3 DC Output source or sink current ±35 mA
ICC DC VCC current ±50 mA
IGND DC GND current ±50 mA
PD Power dissipation per package: *4
Plastic DIP
SO		 750
500		 mW
Tstg Storage Temperature from -0.5 to
+5.0		 °C
TL Lead Temperature, 1.5 mm (Plastic DIP Package), 0.3 mm (SO
Package) from Case for 4 Seconds		 260 °C
* Under absolute maximum conditions operation of microcircuits is not guaranteed. Operation under maximum conditions is guaranteed.
*1 If VI < -0.5V or VI > VCC + 0.5 V.
*2 If VO < -0.5V or VO > VCC + 0.5 V.
*3 If -0.5V < VO < VCC + 0.5 V.
*4 Under operation in the temperature range from 65° to 125°C value of dissipation power drops down - to 12 mW/°C for Plastic DIP - to 8 mW/°C for SOIC


Description

The IN74LV02 is a low-voltage Si-gate CMOS device that is pin and function compatible with 74HC/HCT02A, 74ALS02
