PinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage (Referenced to GND) -0.5 to +7.0 V VIN DC Input Voltage (Referenced to GND) -1.5 to VCC +1.5 V VOUT DC Output Voltage (Referenced to GND) -0.5 to VCC +0.5 V IIN DC Input C...
IN74HC164: PinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage (Referenced to GND) -0.5 to +7.0 V VIN DC Input Voltage (Referenced to GND) -1.5 to VCC +1.5...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol |
Parameter |
Value |
Unit |
VCC |
DC Supply Voltage (Referenced to GND) |
-0.5 to +7.0 |
V |
VIN |
DC Input Voltage (Referenced to GND) |
-1.5 to VCC +1.5 |
V |
VOUT |
DC Output Voltage (Referenced to GND) |
-0.5 to VCC +0.5 |
V |
IIN |
DC Input Current, per Pin |
±20 |
mA |
IOUT |
DC Output Current, per Pin |
±25 |
mA |
ICC |
DC Supply Current, VCC and GND Pins |
±50 |
mA |
PD |
Power Dissipation in Still Air, Plastic DIP+ SOIC Package+ |
750 500 |
mW |
Tstg |
Storage Temperature |
-65 to +150 |
°C |
TL |
Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package) |
260 |
°C |

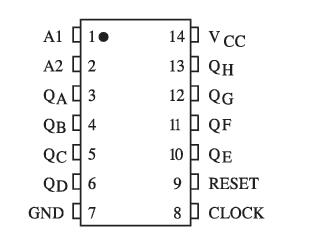

The IN74HC164 is identical in pinout to the LS/ALS164. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs.
The IN74HC164 is an 8-bit, serial-input to parallel-output shift register. Two serial data inputs, A1 and A2, are provided so that one input may be used as a data enable. Data is entered on each rising edge of the clock. The active-low asynchronous Reset overrides theClock and Serial Data inputs.
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 2.0 to 6.0 V
• Low Input Current: 1.0 A
• High Noise Immunity Characteristic of CMOS Devices
