IN74AC161

Features: • Outputs Directly Interface to CMOS, NMOS, and TTL• Operating Voltage Range: 2.0 to 6.0 V• Low Input Current: 1.0 A; 0.1 A @ 25° C• High Noise Immunity Characteristic of CMOS Devices• Outputs Source/Sink 24 mAPinoutSpecifications Symbol Parameter V...

product image

IN74AC161 Picture
See larger image
SeekIC No. : 004374757 Detail

IN74AC161: Features: • Outputs Directly Interface to CMOS, NMOS, and TTL• Operating Voltage Range: 2.0 to 6.0 V• Low Input Current: 1.0 A; 0.1 A @ 25° C• High Noise Immunity Characteris...

IN74AC161 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IN74AC161
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 2.0 to 6.0 V
• Low Input Current: 1.0 A; 0.1 A @ 25° C
• High Noise Immunity Characteristic of CMOS Devices
• Outputs Source/Sink 24 mA


Pinout

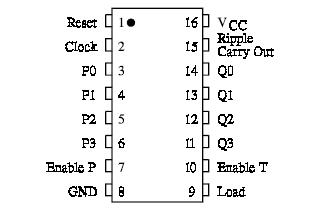

Connection Diagram


Specifications

Symbol

Parameter

 Value Unit
VCC DC Supply Voltage (Referenced to GND) -0.5 to +7.0 V
VIN DC Input Voltage (Referenced to GND) -0.5 to VCC +0.5 V
VOUT DC Output Voltage (Referenced to GND) -0.5 to VCC +0.5 V
IIN DC Input Current, per Pin ±20 mA
IOUT DC Output Sink/Source Current, per Pin ±50 mA
ICC DC Supply Current, VCC and GND Pins ±50 mA
PD Power Dissipation in Still Air, Plastic DIP+
SOIC Package+		 750
500		 mW
Tstg Storage Temperature -65 to +150 °C
TL Lead Temperature, 1 mm from Case for 10
Seconds
(Plastic DIP or SOIC Package)		 260 °C
*Maximum Ratings are those values beyond which damage to the device may occur.
  Functional operation should be restricted to the Recommended Operating Conditions.
  +Derating - Plastic DIP: - 10 mW/°C from 65° to 125°C
                     SOIC Package: : - 7 mW/°C from 65° to 125°C
