IMP6303

Features: `Monitor 4.0V supply`140ms min. reset pulse width`Active-low reset valid with 1.1V supply`Small 3-pin SOT-23 package`Small 3-pin TO-92 package`Small 5-pin SOT-23-5 package`No external components`Specified over full temperature range - 40°C to 105°CApplication·Embedded controllers·Battery...

product image

IMP6303 Picture
See larger image
SeekIC No. : 004374474 Detail

IMP6303: Features: `Monitor 4.0V supply`140ms min. reset pulse width`Active-low reset valid with 1.1V supply`Small 3-pin SOT-23 package`Small 3-pin TO-92 package`Small 5-pin SOT-23-5 package`No external comp...

IMP6303 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IMP6303
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Monitor 4.0V supply
`140ms min. reset pulse width
`Active-low reset valid with 1.1V supply
`Small 3-pin SOT-23 package
`Small 3-pin TO-92 package
`Small 5-pin SOT-23-5 package
`No external components
`Specified over full temperature range
   - 40°C to 105°C


Application

·Embedded controllers
·Battery operated systems
·Intelligent instruments
·Wireless communication systems
·PDAs and handheld equipment


Pinout

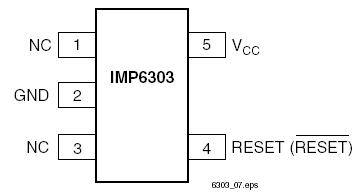

Connection Diagram


Specifications

VCC . . . . . . . . . . . . . . . . . . . . . . . . . 0.3V to 6.0V
RESET, RESET . . . . . . . . . . . 0.3V to (VCC + 0.3V)
Input Current at VCC . . . . . . . . . . . . . . . . . . . 20mA
Output Current: RESET, RESET . . . . . . . . .      20mA
Rate of Rise at VCC . . . . . . . . . . . . . . . . . . .100V/µs
Power Dissipation (TA= 70°C) . . . . . . . . .   320mW
Derate 4mW/°C above 70°C)
Operating Temperature Range . . 40°C to 105°C
Storage Temperature Range . . . .65°C to 160°C
Lead Temperature (soldering, 10 sec) . . . . . 300°C
These are stress ratings only and functional operation is not implied. Exposure to absolute maximum ratings for prolonged time periods may affect device reliability


Description

The IMP6303 is a 4.0V power supply supervisor circuits optimized for lowpower microprocessor (µP), microcontroller (µC) and digital systems.

A reset signal of IMP6303 is issued if the power supply voltage drops below a preset reset threshold and is asserted for at least 140ms after the supply has risen above the reset threshold. The IMP6303 has an active-low RESET output that is guaranteed to be in the correct state for VCC down to 1.1V. The reset comparator is designed to ignore fast transients on VCC.

Low supply current makes the IMP6303 ideal for use in portable and battery operated equipment. The IMP6303 is available in a compact 3-pin SOT23, TO-92 and 5 pin SOT23-packages.
