IMH4AT110, US $ .08-.28 , ROHM Semiconductor, IMH4AT110 DataSheet download, circuit diagram from SeekIC.com

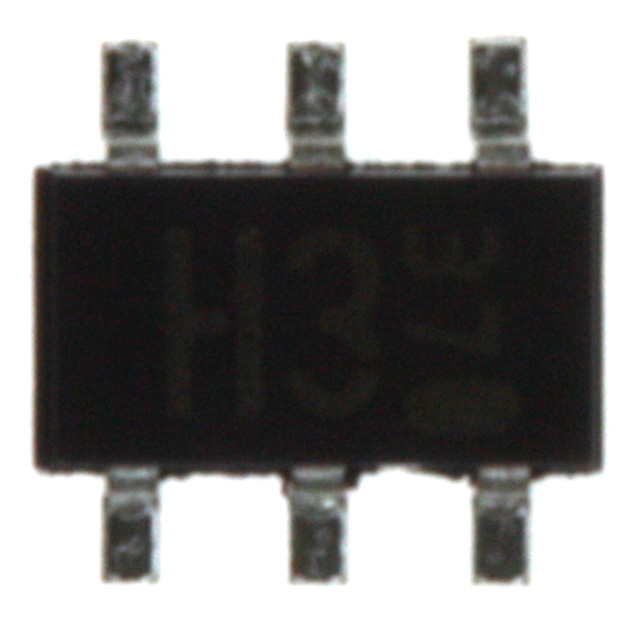

See larger image

SeekIC No. : 00222157 Detail

IMH4AT110: Transistors Switching (Resistor Biased) DUAL NPN 50V 100MA SOT-457

IMH4AT110 Data Sheet

US $ .08~.28 / Piece | Get Latest Price

Part Number:: IMH4AT110
Mfg:: ROHM Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~500

Unit Price
$.28
$.2
$.14
$.08

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

IMH40060 evaluate
US $240.29 - 240.29 / Piece

BASE UNIT 115/230VAC
IMH40062 evaluate
US $280.91 - 280.91 / Piece

W/ALARMS 115/230VAC
IMH43060 evaluate
US $273.34 - 273.34 / Piece

W/SOFTWARE (SW) 115/230VAC

Product Details

Quick Details

Configuration :	Dual	Transistor Polarity :	NPN
Typical Input Resistor :	10 KOhms	Mounting Style :	SMD/SMT
Package / Case :	SC-74-6	Collector- Emitter Voltage VCEO Max :	50 V
Continuous Collector Current :	100 mA	Peak DC Collector Current :	100 mA
Power Dissipation :	300 mW	Maximum Operating Temperature :	+ 150 C
Packaging :	Reel

Description

Typical Resistor Ratio :
Maximum Operating Frequency :
Transistor Polarity : NPN
Maximum Operating Temperature : + 150 C
Packaging : Reel
Mounting Style : SMD/SMT
Collector- Emitter Voltage VCEO Max : 50 V
Continuous Collector Current : 100 mA
Typical Input Resistor : 10 KOhms
Configuration : Dual
Peak DC Collector Current : 100 mA
Power Dissipation : 300 mW
Package / Case : SC-74-6

Parameters:

Technical/Catalog Information	IMH4AT110
Vendor	Rohm Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	2 NPN - Pre-Biased (Dual)
Voltage - Collector Emitter Breakdown (Max)	50V
Current - Collector (Ic) (Max)	100mA
Power - Max	300mW
Resistor - Base (R1) (Ohms)	10K
Resistor - Emitter Base (R2) (Ohms)	-
Vce Saturation (Max) @ Ib, Ic	300mV @ 1mA, 10mA
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 1mA, 5V
Frequency - Transistion	250MHz
Mounting Type	Surface Mount
Package / Case	SOT-457
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IMH4AT110 IMH4AT110 IMH4AT110TR ND IMH4AT110TRND IMH4AT110TR
