IM74AL640AWM

Features:

Features
 Advanced Oxide-isolated Ion-implanted Schottky TTLprocess
 Switching performance is guaranteed over full temperatureand VCC supply range
 Switching performance specified at 50 pF
 PNP input design reduces input loading

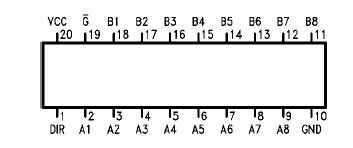

Pinout




Specifications


Supply Voltage                                                            7V
Input Voltage
Control Inputs                                                             7V
I/O ports                                                                  5.5V
Operating Free Air Temperature Range       0°C to +70
Storage Temperature Range             -65°C to +150°C
Typical qJA
N Package                                                     53.0°C/W
M Package                                                     72.0°C/W


Description
