IM00TS

High Frequency / RF Relays DPDT 1.5VDC 2A COMM SIGNAL PC BOARD RLY

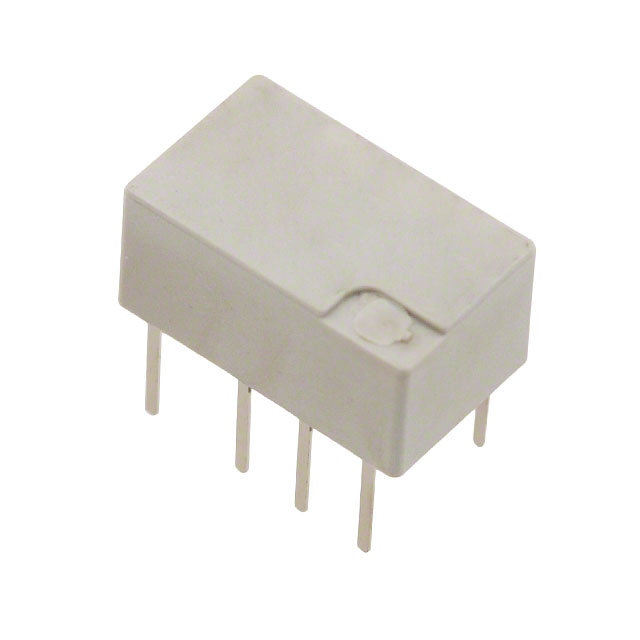

product image

IM00TS Picture
See larger image
SeekIC No. : 002573404 Detail

IM00TS: High Frequency / RF Relays DPDT 1.5VDC 2A COMM SIGNAL PC BOARD RLY

IM00TS Data Sheet

floor Price/Ceiling Price

US $ .9~.9 / Piece | Get Latest Price
Part Number:
IM00TS
Mfg:
TE Connectivity / Axicom
Supply Ability:
5000

Price Break

  • Qty
  • 0~1600
  • Unit Price
  • $.9
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Contact Form : 2 Form C (DPDT-BM) Coil Type : Bifurcated, Polarized, Monostable
Power Consumption : 140 mW

Description

Contact Current Rating :
Coil Voltage :
Frequency :
Termination Style :
Isolation :
Insertion Loss :
Contact Form : 2 Form C (DPDT-BM)
Power Consumption : 140 mW
Coil Type : Bifurcated, Polarized, Monostable


Features:

- Telecom/signal relay (dry circuit, test access, ringing)
- Slim line10 x 6 mm, 0.39 x 0.24 inch
- Low profile 5.65 mm, 0.222 inch
- Minimum board-space 60 mm2
- Switching current 2 A
- 2 changeover contacts (2 form C / DPDT)
- Bifurcated contacts, gold plated
- High sensitivity results in low nominal power consumption
140 mW for non latching standard
100 mW for latching version and non latching high sensitive
version
- High surge capability (1.2/50 s and 10/700 s) meets
Bellcore GR 1089, FCC Part 68 and ITU-T K20, 21, 45
- 1500 V between open contacts
-  2500 V between coil and contacts
- High mechanical shock resistance
up to 300 G functional
up to 500 G surviva


Application

- Communications equipment
Linecard application analog, ISDN, xDSL,
PABX
Voice over IP
- Office and business equipment
- Measurement and control equipment
- Consumer electronics
Set top boxes, HiFi
- Medical equipment
