Product Details

Description



Features:

• Number of effective pixels: 31500 pixels (10500 pixels ×3)
• Pixel size: 8µm×8µm (8µm pitch)
• Distance between line: 64µm (8 Lines)
• Single-sided readout
• Shutter funciton
• Ultra low lag/High sensitivity
• Single 12V power supply
• Input Clock Pulse: CMOS 5V drive
• Number of output 3 (R, G, B)
• Package: 24 pin DIP (400 mil)

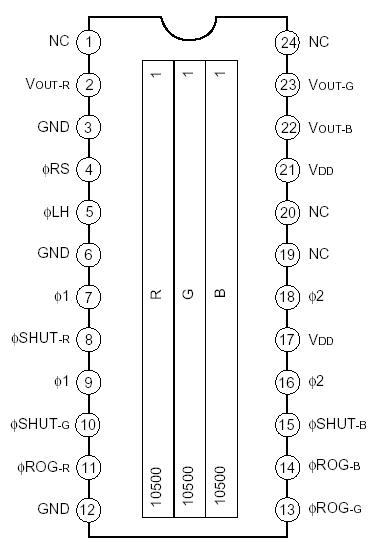

Pinout

  Connection Diagram


Specifications

Supply voltage  . . . . . . . . . . . . . . .VDD 15 V
Operating temperature  . . .10 to +55 °C
Storage temperature  . . . ..30 to +80 °C



Description

The ILX734K is a reduction type CCD linear sensor developed for color image scanner, and has shutter function per each color. This sensor reads A4-size documents at a density of 1200DPI.
