ILX115LA

Features: • Number of effective pixels: 15000 pixels (5000 pixels×3)• Pixel size: 14µm×14µm (14µm pitch)• Distance between line: 84µm (6 lines)• Maximum data rate: 30MHz/color (20MHz/color during clamp circuit usage)• Single 9V power supplyR...

product image

ILX115LA Picture
See larger image
SeekIC No. : 004374278 Detail

ILX115LA: Features: • Number of effective pixels: 15000 pixels (5000 pixels×3)• Pixel size: 14µm×14µm (14µm pitch)• Distance between line: 84µm (6 lines)• Maxim...

ILX115LA Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ILX115LA
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Number of effective pixels: 15000 pixels (5000 pixels×3)
• Pixel size: 14µm×14µm (14µm pitch)
• Distance between line: 84µm (6 lines)
• Maximum data rate: 30MHz/color (20MHz/color during clamp circuit usage)
• Single 9V power supply
• Input Clock Pulse: CMOS 5V drive
• Number of output: 6 (2/color)
• Package: 44pin SDIP (400mil)


Pinout

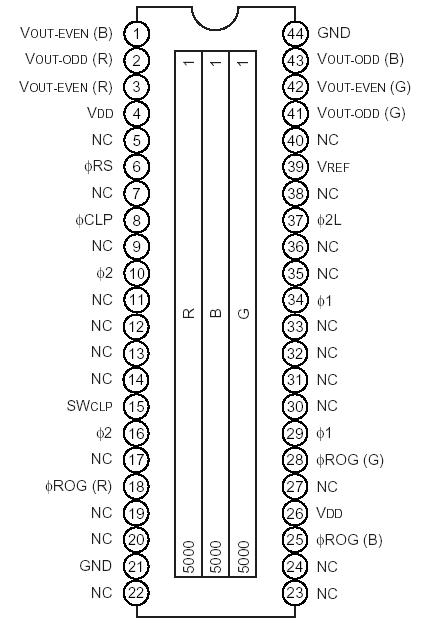

Connection Diagram


Specifications

Supply voltage VDD  . . . . . . . . . . . . . . . .11 V
Operating temperature  . . . .10 to +60 °C
Storage temperature  . . . . . 30 to +80 °C


Description

The ILX115LA is a reduction type CCD linear sensor developed for color DPPC. This sensor reads A3-size documents at a density of 400 DPI (Dot Per Inch).
