Product Details

Description



Features:

• Dual Version of SFH610 Series
• High Current Transfer Ratios
   ILD610-1, 40-80%
   ILD610-2, 63-125%
  ILD610-3, 100-200%
  ILD610-4, 160-320%
• Isolation Test Voltage, 5300 VRMS
• VCEsat0.25 (0.4) V at IF=10 mA, IC=2.5 mA
• VCEO=70 V
• Underwriters Lab File #E52744
• VDE #0884 Available with Option 11



Pinout

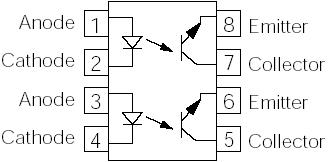

Connection Diagram


Specifications

Reverse Voltage ...........................................6 V
Surge Forward Current (t £10 ms).............1.5 A
Total Power Dissipation ........................100 mW
Derate Linearly from 25°C..............1.3 mW/°C
DC Forward Current ................................60 mA


Description

The ILD610 Series is a dual channel optocoupler series for high density applications. Each channel consists of an optically coupled pair with a Gallium Arsenide infrared LED and a silicon NPN phototransistor.

Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. The ILD610 Series is the dual version of ILD610 Series and uses a repetitive pin-out configuration instead of the more common alternating pin-out used in most dual couplers.
