Features:

• Ultra low 1mV dropout per 1mA load
• 1% output voltage accuracy
• Only 30mVRMSnoise
• Uses low ESR ceramic output capacitor to minimize
   noise and output ripple
• Only 100 µA ground current at 100mA load
• Ripple rejection up to 85dB at 1kHz, 60dB at 1MHz
• Excellent line and load transient response
• Over current / over temperature protection
• Guaranteed to 150mA output current
• Industry standard five lead SOT-23 package
• Fixed 2.8V, 3.0V, 3.3V, 3.6V, 4.7V, 5.0V and adjustable
   output voltage options
• Metal mask option available for custom voltages between
   2.5V and 10V


Application

• Cellular phones
• Wireless communicators
• PDAs / palmtops / organizers
• Battery powered portable electronics


Pinout

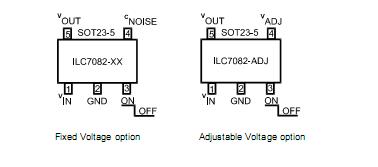

Connection Diagram


Specifications

Parameter Symbol Ratings Units
Input voltage
On/Off Input voltage 		VIN

VON/OFF
 -0.3 to +13.5
-0.3 to VIN 		V
Output Current IOUT
 Short circuit protected MA
Output voltage VOUT
 -0.3 to VIN+0.3 V
Package Power Dissipation
(SOT-23-5)
PD
 250 (Internally Limited) MW
Maximum Junction Temp
Range
TJ(max)
 -40~+150
OC
Storage Temperature TSTG
 -40~+125
OC
Operating Ambient
Temperature
TA
 -40 to +85
°C
Package Thermal Resistance JA
 333 °C/W



Description

The ILC7082 is a 150mA low dropout (LDO) voltage regulator  designed  to  provide  a high performance solution to low  power  systems. The device offers a typical combination  of low  dropout  and  low  quiescent current expected of CMOS parts, while uniquely providing the low noise and high ripple rejection characteristics usually only associated with bipolar LDO regulators.

The device has been optimized to meet the needs of modern wireless communications design; Low noise, low dropout, small size, high peak current, high noise immunity.

The ILC7082 is designed to make use of low cost ceramic capacitors while outperforming other devices that require tantalum capacitors.
