ILC5062

Features:

• All-CMOS design in SOT-23 or SC70 package
• A grade ±1% precision in Reset Detection
• Standard grade : ±2% precision in Reset Detection
• Only 1A of Iq
• Over 2mA of sink current capability
• Built-in hysteresis of 5% of detection voltage
• Voltage options of 2.6, 2.7, 2.8, 2.9, 3.1, 4.4, and 4.6V fit most supervisory applications
• Active low push-pull output


Application

• Microprocessor reset circuits
• Memory battery back-up circuitry
• Power-on reset circuits
• Portable and battery powered electronics

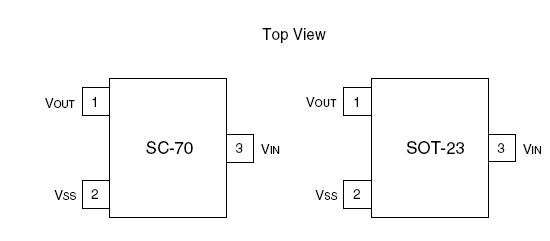

Pinout




Specifications

Parameter	Symbol	Ratings	Units
Input Voltage	VIN	12	v
Output Current	IOUT	50	mA
Output Voltage	VOUT	VSS-0.3~VIN=+0.3	v
Continuous Total Power Dissipation (SOT-23)	PD	150	mW
Operating Ambient Temperature	Topr	-30~+80	°C
Storage Temperature	Tstg	-40~+125	°C

Description

All-CMOS voltage monitoring circuit of the ILC5062 in either a 3-lead SOT-23 or SC70 package offers the best performance in power consumption and accuracy.

The ILC5062 is available in a series of ±1% (A-grade) or 2% (standard grade) accurate trip voltages to fit most microprocessor applications. Even though its output can sink over 2mA, the device draws only 1A in normal operation.

Additionally, a built-in hysteresis of 5% of detect voltage simplifies system design.
