ILA7056B

Features: • DC volume control• Few external components• Mute mode• Thermal protection• Short-circuit proof• No switch-on and switch-off clicks• Good overall stability• Low power consumption• Low HF radiation• ESD protected on all pinsPino...

product image

ILA7056B Picture
See larger image
SeekIC No. : 004374144 Detail

ILA7056B: Features: • DC volume control• Few external components• Mute mode• Thermal protection• Short-circuit proof• No switch-on and switch-off clicks• Good overall...

ILA7056B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ILA7056B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• DC volume control
• Few external components
• Mute mode
• Thermal protection
• Short-circuit proof
• No switch-on and switch-off clicks
• Good overall stability
• Low power consumption
• Low HF radiation
• ESD protected on all pins




Pinout

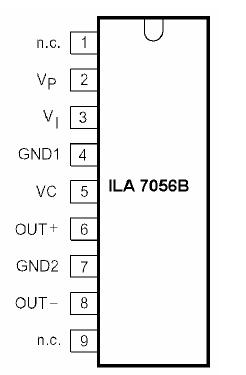

Connection Diagram




Specifications

SYMBOL PARAMETER CONDITIONS MIN MAX UNIT
VP supply voltage - 18 V
V3, 5 input voltage pins 3 and 5 - 5 V
IORM repetitive peak output current - 1.5 A
IOSM non-repetitive peak output current - 1.5 A
Ptot total power dissipation Tcase < 60ºC - 9 W
Tamb operating ambient temperature -40 +85 °C
Tstg storage temperature -55 +150 °C
Tvj virtual junction temperature - +150 °C
Tsc short-circuit time - 1 h





Description

The ILA7056B is a mono Bridge-Tied Load (BTL) output amplifier with DC volume control. It is designed for use in TV and monitors, but is also suitable for battery-fed portable recorders and radios. The device is contained in a 9-pin medium power package.

A Missing Current Limiter (MCL) of the ILA7056B is built in. The MCL circuit is activated when the difference in current between the output terminal of each amplifier exceeds 100 mA (300 mA typ.). This level of 100 mA allows for headphone applications (single-ended).
