Product Details

Description



Features:

·  Voltage regulator with adjustable static resistance
·  Provides supply for external circuitry
·  Symmetrical high-impedance inputs (64 KW) for dynamic, magnetic or piezoelectric microphones
·  Asymmetrical high-impedance input (32 KW) for electret microphone
·  Dual-Tone Multi-Frequency (DTMF) signal input with confidence tone
·  Mute input for pulse or DTMF dialling
·  Power down input for pulse dial or register recall
·  Receiving amplifier for magnetic, dynamic or piezoelectric earpieces
·  Large gain setting range on microphone and earpiece amplifiers
·  Line current-dependent line loss compensation facility for microphone and earpiece amplifiers
·  Gain control adaptable to exchange supply
·  DC line voltage adjustment facility


Pinout

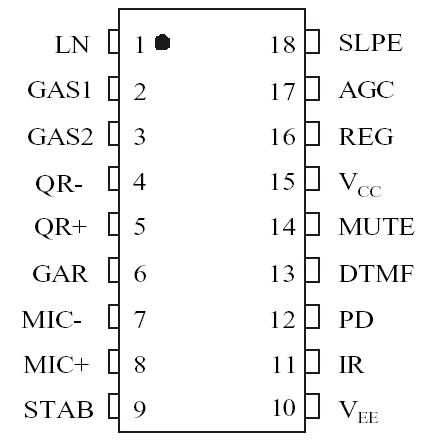

Connection Diagram


Specifications

SYMBOL PARAMETER Condition MIN. MAX. UNIT
Iline Line current Input 01 - 140 mA
Tstg storage temperature   -40 +85 °C
TL Lead Temperature, 1.0 mm from Case for 4 Seconds     265 °C



Description

The ILA1068 is a bipolar integrated circuit performing all speech and line interface functions required in fully electronic telephone sets. It performs electronic switching between dialling and speech.
