IL9151-3

Features: • Direct telephone line operation• 4 x 3 matrix keyboard interface• Supply voltage range of 2.0 to 5.5 volts• Inexpensive RC oscillator• Low power standby mode for redialing• 22-digit redial memory• Redial with either * or # key• Dialer res...

product image

IL9151-3 Picture
See larger image
SeekIC No. : 004374107 Detail

IL9151-3: Features: • Direct telephone line operation• 4 x 3 matrix keyboard interface• Supply voltage range of 2.0 to 5.5 volts• Inexpensive RC oscillator• Low power standby mod...

IL9151-3 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IL9151-3
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Direct telephone line operation
• 4 x 3 matrix keyboard interface
• Supply voltage range of 2.0 to 5.5 volts
• Inexpensive RC oscillator
• Low power standby mode for redialing
• 22-digit redial memory
• Redial with either * or # key
• Dialer reset for line power breaks > 200 ms
• Selectable make/break ratio
• High speed test capacity


Pinout

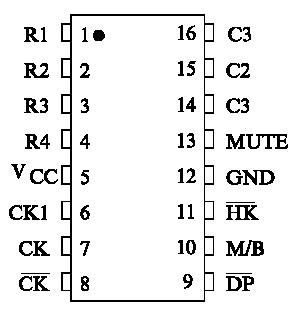

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage (Referenced to GND) -0.3 to +5.5 V
VIN DC Input Voltage (Referenced to GND) -0.3 to VCC +0.3 V
PD Power Dissipation in Still Air , Plastic DIP** 600 mW
Tstg Storage Temperature -55 to +150
TL Lead Temperature, 1mm from case for 10 seconds 260

* Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
** Durating: -10 mW/°C from 65°C to 70°C.


Description

The IL9151-3 pulse dialer is a monolithic CMOS integrated circuit which converts pushbutton inputs to a series of pulses suitable for telephone dialing. It is intended to replace mechanical telephone dialers and can operate directly from telephone lines. CMOS technology is used to produced this device, resulting in very low power requirements and high noise immunity. The IL9151-3 can be easily interfaced with a variety of telephones, requiring only a minimal number of external components.
