IL91350A

Features: • DTMF/PULSE switchable dialer• 32 digits for Redial memory• Three by 16 digits for one touch direct repertory• Ten by 16 digits for two touch indirect repertory• Mix dialing is allowable, and the dialing length is unlimited• Pulse to Tone (*/T) keypad...

product image

IL91350A Picture
See larger image
SeekIC No. : 004374105 Detail

IL91350A: Features: • DTMF/PULSE switchable dialer• 32 digits for Redial memory• Three by 16 digits for one touch direct repertory• Ten by 16 digits for two touch indirect repertory...

IL91350A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IL91350A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• DTMF/PULSE switchable dialer
• 32 digits for Redial memory
• Three by 16 digits for one touch direct repertory
• Ten by 16 digits for two touch indirect repertory
• Mix dialing is allowable, and the dialing length is unlimited
• Pulse to Tone (*/T) keypad for Long Distance Call operation
• Easy operation with Redial, Flash, Pause and */T keypads
• Pause, P- - >T (Pulse to Tone) can be stored as a digit in memory
• Flash time 600 mS
• 4 x 5 keyboard can be used
• Power on reset on chip
• Use 3.579545 MHz crystal or ceramic resonator
• Dial Pulse Rate: 10 pps


Pinout

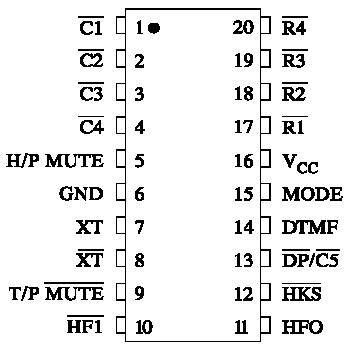

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage (Referenced to GND) -0.3 to +7.0 V
VIN DC Input Voltage (Referenced to GND) -0.3 to VCC +0.3 V
VOUT DC Output Voltage (Referenced to GND) -0.3 to VCC +0.3 V
PD Power Dissipation in Still Air, Plastic DIP**
Plastic SOIC**		 500
250		 mW
Tstg Storage Temperature -55 to +150 °C

* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the Recommended Operating Conditions.
** Durating: -10 mW/°C from 65°C to 70°C.


Description

The IL91350A is a silicon CMOS IC that provide necessary signal for either Pulse or Tone dialing. It features Handfree dialing, Hold, and 13 by 16 digits automatic dialing memory.
