IL91260C

Features: • 32-digit redial memory (31 digits in tone mode)• Ten indirect memories, 16 digits in pulse mode, 15 digits in tone mode• Tone/Pulse mode switching via slide switch (4.1 second pause inserted automatically)• Wide operating voltage: 1.8 V ∼ 5.5 V• Uses...

product image

IL91260C Picture
See larger image
SeekIC No. : 004374103 Detail

IL91260C: Features: • 32-digit redial memory (31 digits in tone mode)• Ten indirect memories, 16 digits in pulse mode, 15 digits in tone mode• Tone/Pulse mode switching via slide switch (4.1...

IL91260C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IL91260C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 32-digit redial memory (31 digits in tone mode)
• Ten indirect memories, 16 digits in pulse mode, 15 digits in tone mode
• Tone/Pulse mode switching via slide switch (4.1 second pause inserted automatically)
• Wide operating voltage: 1.8 V ∼ 5.5 V
• Uses 480 KHz ceramic resonator
• Low memory retention current
• Selectable Make/Break ratio
• Dial Pulse Rate: 10 pps


Pinout

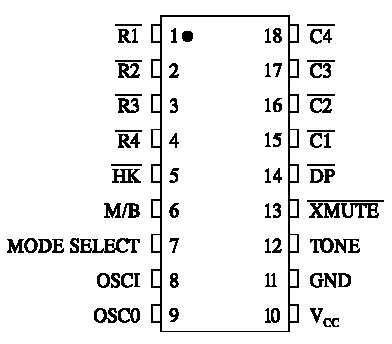

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage (Referenced to GND) -0.3 to +6.0 V
VIN DC Input Voltage (Referenced to GND) -0.3 to VCC +0.3 V
VOUT DC Output Voltage (Referenced to GND) -0.3 to VCC +0.3 V
VOUT DC Output Voltage (DP, XMUTE) -0.3 to 1.2 V
ITONE DC Output Current(Tone) 50 mA
PD Power Dissipation in Still Air, Plastic DIP** 500 mW
Tstg Storage Temperature -40 to +125 °C



Description

The IL91260C is tone/pulse switchable dialer with ten 16-digit number memories and 32-digit redial memory. Pulse to tone mode switching is performed via a slide switch.
