IL485-3V

Mounting Type: Surface Mount
Number of Drivers/Receivers: 1/1
Voltage - Supply: 4.5 V ~ 5.5 V
Package / Case: 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package: 16-SOIC
Packaging: Tube
Protocol: RS485
Type: Transceiver, Isolated
Series: IsoLoop®
Manufacturer: NVE Corp/Isolation Products


Features:

· 3.3 V Input Supply Compatible
· 2500 VRMS Isolation (1 min)
· 25 ns Maximum Propagation Delay
· 35 MBaud Data Rate
· 1 ns Pulse Skew (typ.)
· Designed for Multi-point Transmission on Long Bus Lines in Noisy Environments
· ±60 mA Driver Output Capability
· Thermal Shutdown Protection
· Meets or Exceeds ANSI RS-485 and ISO 8482:1987 (E)
· -40°C to +85°C Temperature Range
· PROFIBUS International Component Recognition
· 16 Pin SOIC Package
· UL1577 Approval Pending
· IEC 61010-1 Approval Pending


Application

· PROFIBUS/RS485
· RS-485 Systems
· Multiple Data Point Transmission

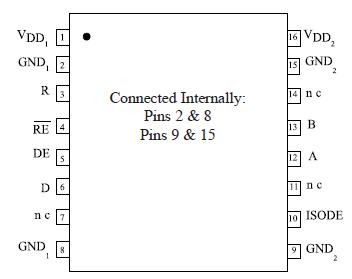

Pinout




Specifications

Parameters	Symbol	Min.	Max.	Units
Storage Temperature	TS	-65	150	oC
Ambient Operating Temperature	TA	-40	85	oC
Voltage Range at A or B Bus Pins		-7	12	V
Supply Voltage(1)	VDD1,VDD2	-0.5	7	V
Digital Input Voltage		-0.5	VDD+ 0.5	V
Digital Output Voltage		-0.5	VDD+ 0.1	V
Continuous Total Power Dissipation			725 377	mW (25°C) mW (85°C)
Maximum Output Current	IO		95	mA
Lead Solder Temperature (10s)			260	°C
ESD	2kV Human Body Model

Description

The IL485-3V is a galvanically isolated, high speed differential bus transceiver, designed for bidirectional data communication on balanced transmission lines. Isolation is achieved through patented* Isoloop® technology. The IL485-3V is the first isolated RS-485 interface available in a standard 16 pin SOIC package, which meets the ANSI Standards EIA/TIA-422-B and RS485 and is compatible with 3.3V input supplies.

The IL485-3V has current limiting and thermal shutdown features to protect against output short circuits and bus contention situations where these may cause excessive power dissipation.

With 1 nsec pulse skew and 16 nsec propagation delay, the IL485 is ideal for PROFIBUS applications.
