Product Details

Description



Features:

• Operation Very low power consumption: 200㎂
• Wide common-mode (up to VCC+) and differential voltage ranges
• Low input bias and offset currents
• Output short-circuit protection
• High input impedance J-FET input stage
• Internal frequency compensation
• Latch up free operation
• High slew rate: 3.5V/s


Pinout

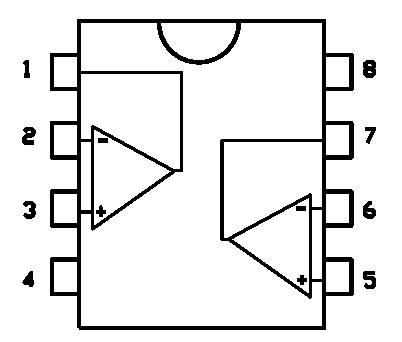

Connection Diagram


Specifications

Symbol Parameter IL062 Units
VCC Supply Voltage (note 1) 18 V
Vi Input Voltage (note 3) 15 V
Vid Differential Input Voltage (note 2) 30 V
Ptot Power Dissipation 680 mW
  Output Short-Circuit Duration (Note 4) Infinite
Toper Operating Free-Air Temperature Range -40 to +85 °C
Tstg Storage Temperature Range -65 to +150 °C



Description

The IL062 is high speed J-FET input dual operational amplifier.

This J-FET input operational amplifier of the IL062 incorporates well matched, high voltage J-FET and bipolar transistors in a monolithic integrated circuit.

The IL062 feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.
