Features: • Driven Direct from TTL or CMOS Logic• Translates Logic Levels Up to 30V Levels• Switches 20VACPP Signals When Used in Conjunction with the IH401A Varafet (As An Analog Gate)• tON 300ns & tOFF 200ns for 30V Level Shifts• Quiescent Supply Current100A fo...
IH6201: Features: • Driven Direct from TTL or CMOS Logic• Translates Logic Levels Up to 30V Levels• Switches 20VACPP Signals When Used in Conjunction with the IH401A Varafet (As An Analog ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

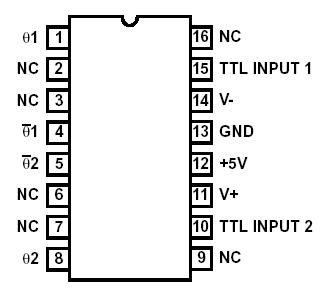

The IH6201 is a CMOS, Monolithic, Dual Voltage Translator; it takes low level TTL or CMOS logic signals and converts them to higher levels (i.e. to ±15V swings). This translator is typically used in making solid state switches, or analog gates.
When used in conjunction with the IH401A Varafets, the combination makes a complete solid state switch capable of switching signals up to 22VP-P and up to 20MHz in frequency. IH6201 switch is a "break-before-make" type (i.e. tOFF time < tON time). The combination has typical tOFF » 80ns and typical tON » 200ns for signals up to 20VP-P in amplitude.
A TTL "1" input strobe will force the q driver output up to V+ level; the q output will be driven down to the V- level. When the TTL input goes to "0", the q output goes to V- and q goes to V+; thus q and q are 180o out of phase with each other. IH6201 complementary outputs can be used to create a wide variety of functions such as SPDT and DPDT switches, etc.; alternatively the complementary outputs of IH6201 can be used to drive N and P channel MOSFETs, to make a complete CMOS analog gate.
The driver typically uses +5V and ±15V power supplies, however a wide range of V+ and V- is also possible. IH6201 is necessary that V+ > 5V for the driver to work properly, however.
