IH5151

Features: • Low rDS(ON) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25Ω• Switches Greater than 20VP-P Signals with ±15V Supplies• Quiescent Current (Max) . . . . . . . . . . . . . . . . . . . . 100µA• Break-Before-Make Switching- tOFF . . . . ....

product image

IH5151 Picture
See larger image
SeekIC No. : 004373687 Detail

IH5151: Features: • Low rDS(ON) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25Ω• Switches Greater than 20VP-P Signals with ±15V Supplies• Quiescent Current (Max) . ...

IH5151 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IH5151
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low rDS(ON) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25Ω
• Switches Greater than 20VP-P Signals with ±15V Supplies
• Quiescent Current (Max) . . . . . . . . . . . . . . . . . . . . 100µA
• Break-Before-Make Switching
- tOFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120ns
- tON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200ns
• TTL, CMOS Compatible
• Complete Monolithic Construction
• Supply Range. . . . . . . . . . . . . . . . . . . . . . . . . ±5V to ±15V


Pinout

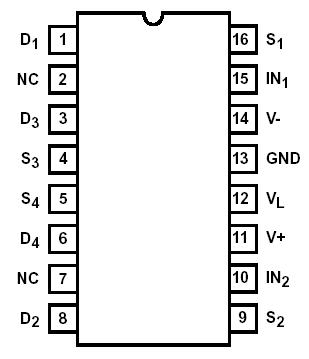

Connection Diagram


Specifications

V+ to V- . . . . . . . . . . . . . . . . . .<36V
V+ to VD. . . . . . . . . . . . . . . . .  <30V
VD to V- . . . . . . . . . . . . . . . . .. <30V
VD to VS. . . . . . . . . . . . . . . . <±22V
VL to V- . . . . . . . . . . . . . . . . .  <33V
VL to VIN . . . . . . . . . . . . . . . .. <30V
VL. . . . . . . . . . . . . . . . . . . . . . <20V
VIN . . . . . . . . . . . . . . . . . . . .  <20V
Current (Any Terminal). . . . . .50mA


Description

The IH5151 solid state analog switch is designed using an improved, high voltage CMOS technology.

Key performance advantages in the IH5151 are TTL compatibility and ultra low power operation. rDS(ON) switch resistance is typically in the 14Ω to 18Ω area, for signals in the -10V to +10V range. Quiescent current is less than 10µA. The IH5151 also guarantees Break-Before-Make switching which is logically accomplished by extending the tON time (200ns typical) such that it exceeds tOFF time (120ns typical). This insures that an ON channel will be turned OFF before an OFF channel can turn ON. The need for external logic required to avoid channel to channel shorting during switching is thus eliminated.
