IFR3000

Application• Supports IS-98 (CDMA) and IS-19 (AMPS) standards for dual-mode operation• 2.7 to 3.15 V supply voltage• Low current: 26 / 21 mA in CDMA Rx / FM Rx Modes• Rx power control through 90 dB dynamic range AGC amplifier• IF mixer for downconverting IF to analog ...

product image

IFR3000 Picture
See larger image
SeekIC No. : 004373653 Detail

IFR3000: Application• Supports IS-98 (CDMA) and IS-19 (AMPS) standards for dual-mode operation• 2.7 to 3.15 V supply voltage• Low current: 26 / 21 mA in CDMA Rx / FM Rx Modes• Rx powe...

IFR3000 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IFR3000
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Application

• Supports IS-98 (CDMA) and IS-19 (AMPS) standards for dual-mode operation
• 2.7 to 3.15 V supply voltage
• Low current: 26 / 21 mA in CDMA Rx / FM Rx Modes
• Rx power control through 90 dB dynamic range AGC amplifier
• IF mixer for downconverting IF to analog baseband
• Low-pass filtering for CDMA and FM I- and Q-component baseband signal demodulation
• 4-bit ADCs convert CDMA I and Q analog baseband components to digital baseband
• 8-bit ADCs convert FM I and Q analog baseband to digital baseband
• Clock generators for CDMA / AMPS operation
• VCO for generation of Rx LO mixing signal
• I- and Q-channel DC offset control inputs drive baseband DC voltage offset to zero in CDMA and FM signal paths
• Operational Mode compatibility with the MSM2300™, MSM3000® and MSM3100™ devices
• Enhanced features with MSM3000 device through three-line serial bus interface (SBI):
Slotted FM Mode
Selective power-down
Mode selection
• 48-lead LQFP and 48-pin BCC packaging options for dense circuit assemblies


Pinout

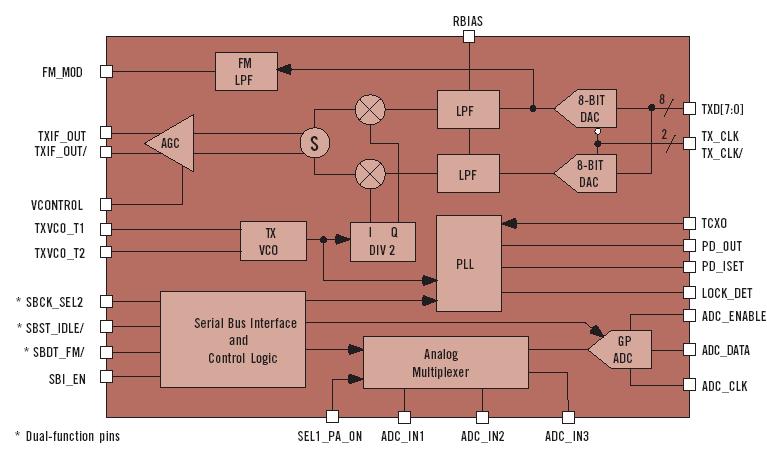

Connection Diagram


Description

The QUALCOMM IFR3000™ and IFT3000™ Rx and Tx IF/Baseband processors offer significant reduction in cost, size and pin count over previous generation products. By integrating the functionality of three Application Specific Integrated Circuits (ASICs) into two ASICs, designers now possess IF-to-Baseband and Baseband-to-IF processing power, and Rx and Tx Automatic Gain Control (AGC) circuitry on either two 48-pin Low-profile Quad Flat Pack (LQFP) packages or two 48-pin Bump Chip Carrier (BCC) packages.

The IFR3000 and IFT3000 Rx and Tx IF/Baseband processors are designed for use in dual-mode CDMA and FM portable cellular telephones. The IFR3000 and IFT3000 devices interface between the radio-frequency (RF) section and the digital processing circuitry of the telephone.
