IDTQS74FCT2257T

Features: • CMOS power levels: <7.5mW static• Undershoot clamp diodes on all inputs• True TTL input and output compatibility• Ground bounce controlled outputs• Reduced output swing of 0 to 3.5V• Built-in 25 series resistor outputs reduce reflection and other ...

product image

IDTQS74FCT2257T Picture
See larger image
SeekIC No. : 004373516 Detail

IDTQS74FCT2257T: Features: • CMOS power levels: <7.5mW static• Undershoot clamp diodes on all inputs• True TTL input and output compatibility• Ground bounce controlled outputs• Reduc...

IDTQS74FCT2257T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS74FCT2257T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• CMOS power levels: <7.5mW static
• Undershoot clamp diodes on all inputs
• True TTL input and output compatibility
• Ground bounce controlled outputs
• Reduced output swing of 0 to 3.5V
• Built-in 25 series resistor outputs reduce reflection and other system noise
• Std., A, and C speed grades with 4.3ns for C
• IOL = 12mA
• Available in SOIC, QSOP, and S1 packages


Pinout

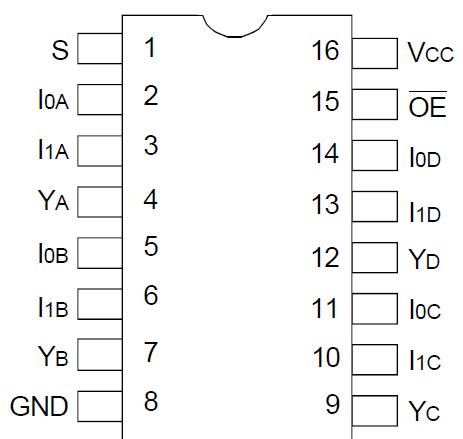

Connection Diagram


Specifications

Symbol

Description

Max
Unit
VTERM
Terminal Voltage with Respect to GND
0.5 to +7
V
TSTG
Storage Temperature
65 to +150
°C
IOUT
DC Output Current Max Current Sink/Pin
+120
mA
IIK
Input Diode Current, VIN < 0
-20
mA

IOK
DC Output Current, VOUT < 0
-50
mA

NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

The IDTQS74FCT2257T is a high-speed CMOS TTL-compatible, quad, 2-input multiplexer with a 25 resistor output, useful for driving transmission lines and reducing system noise. All inputs have clamp diodes for undershoot noise suppression. All outputs have ground bounce suppression. Outputs will not load an active bus when Vcc is removed from the device.
