IDTQS3VH861

Features:

* N channel FET switches with no parasitic diode to V_CC
Isolation under power-off conditions
No DC path to V_CC  or GND
5V tolerant in OFF and ON state
* 5V tolerant I/Os
* Low R_ON - 4 typical
* Flat R_ON characteristics over operating range
* Rail-to-rail switching 0 - 5V
* Bidirectional dataflow with near-zero delay: no added ground bounce
* Excellent RON matching between channels
*V_CC operation: 2.3V to 3.6V
* High bandwidth - up to 500MHz
* LVTTL-compatible control Inputs
* Undershoot Clamp Diodes on all switch and control Inputs
* Low I/O capacitance, 4pF typical
* Available in QSOP and TSSOP packages


Application

Hot-swapping
10/100 Base-T, Ethernet LAN switch
Low distortion analog switch
Replaces mechanical relay
ATM 25/155 switching

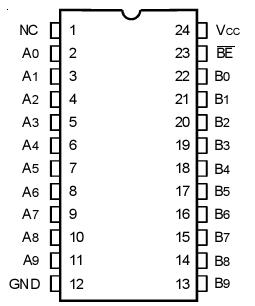

Pinout




Specifications

Symbol	Description	Max	Unit
VTERM(2)	SupplyVoltage to Ground	0.5 to +4.6	V
VTERM(3)	DC Switch Voltage VS	0.5 to +5.5	V
VTERM(3)	DC Input Voltage VIN	0.5 to +5.5	V
VAC	AC Input Voltage (pulse width 20ns)	3	V
IOUT	DC Output Current (max. sink current/pin)	120	mA
TSTG	Storage Temperature	65 to +150	°C

Description

   The IDTQS3VH861 HotSwitch with 10-bit flow-through pin out is a high bandwidth bus switch.  The IDTQS3VH861 has very low ON resistance,
resulting in under 250ps propagation delay through the switch.  The switches are controlled by active low enable (BE) control.  In the ON state,the switches can pass signals up to 5V.  In the OFF state, the switches offer very high impedence at the terminals.

   The combination of near-zero propagation delay, high OFF impedance,and over-voltage tolerance makes the IDTQS3VH861 ideal for high perfor-mance communications applications.

   The IDTQS3VH861 is characterized for operation from -40 to +85.
